Quick Noise Test
The quick noise test measures the noise of the detector, with Max-Light Cartridge Cell or with Max-Light Cartridge Test Cell installed, in one minute intervals over a total of 5 minutes.
The noise of the detector is calculated by using the maximum amplitude for all random variations of the detector signal of frequencies greater than one cycle per hour. The noise is determined for 5 one minute intervals and is based on the accumulated peak-to-peak noise for the intervals. At least seven data points per cycles are used in the calculation. The cycles in the noise determination are not overlapping.
If the test is performed with the Max-Light Cartridge Test Cell, the test results are not influenced by solvent or pump effects.
适用于
|
所需部件
数量 | 部件号 | 描述 | |
|---|---|---|---|
1 |
|
| 最大光强卡套流通池（充满水） |
1 |
|
| 最大光强卡套测试池 |
前提条件
|
Run the Quick Noise Test with Agilent Lab Advisor (for further information see Online-Help of user interface).

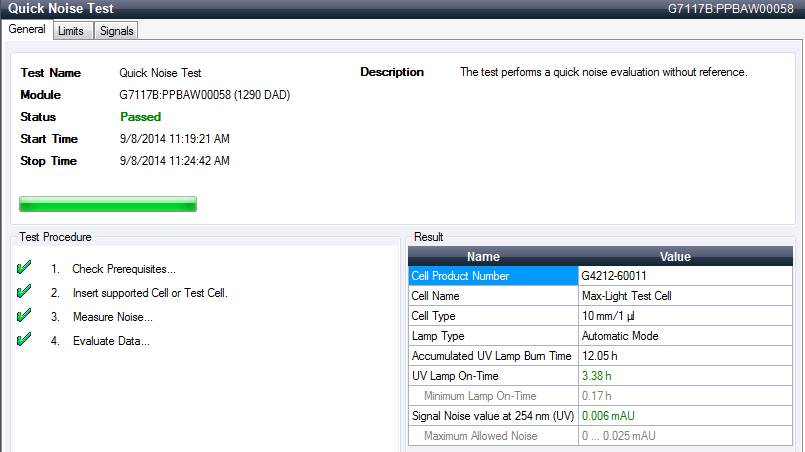

图: Quick Noise Test – Results

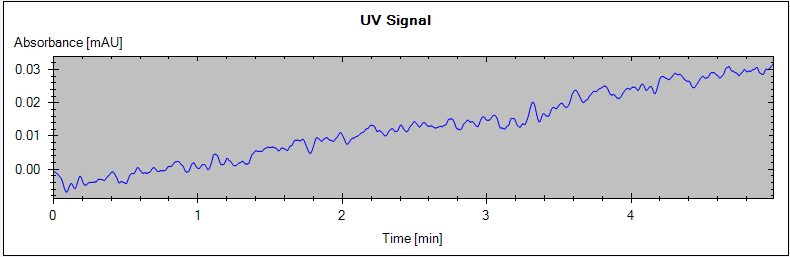

图: Quick Noise Test – Signal
