Using the Agilent Lab Advisor
-
Set up the HPLC system and the Agilent Lab Advisor.
-
Flush the flow cell with clean bi-distilled water.
-
Turn on the FLD lamp.
-
Run the Wavelength Accuracy Test.
The FLD will change into the multi-excitation mode with emission wavelength at 397 nm and scan in the range of the expected maximum of 350 nm ± 20 nm.
As result, the maxima should be found at 350 nm ± 3 nm, see following figure.
The FLD will change into the multi-emission mode with excitation wavelength at 350 nm and scan in the range of the expected maximum of 397 nm ± 20 nm.
As result, the maxima should be found at 397 nm ± 3 nm, see following figure.

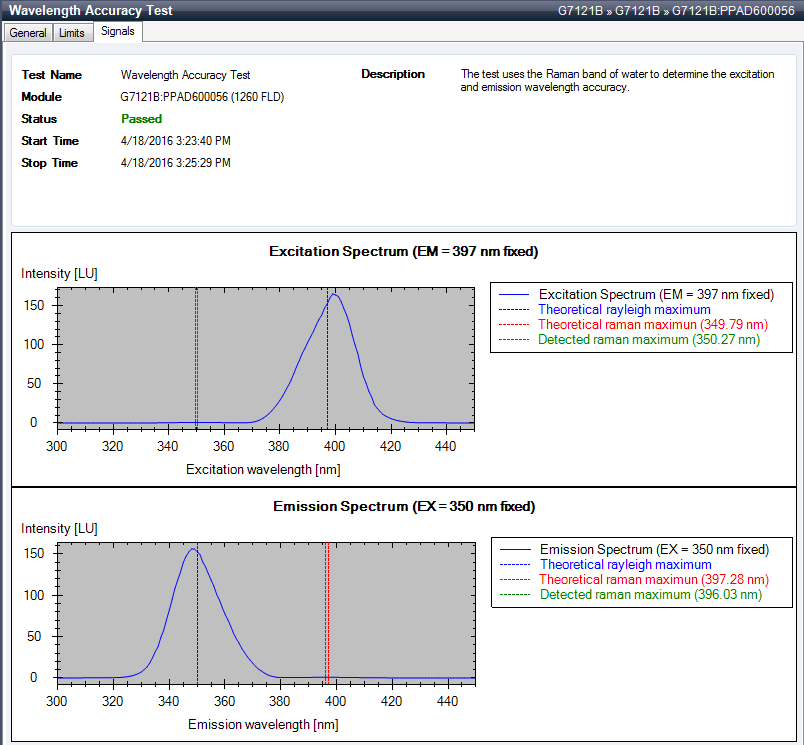

图: Excitation and Emission Spectrum (expected results) 注意
If the plots do not have a maximum around EM=397 nm and EX=350 nm (± 3 nm) the test fails. See Interpretation of the Results .

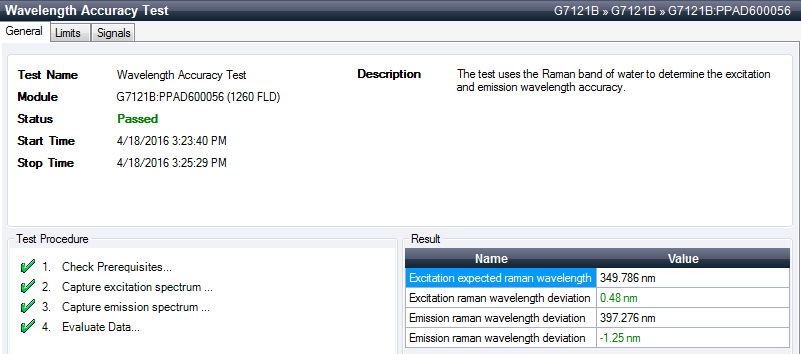

If the test fails observe the maxima of the EX or EM side under the Signals tab.
If the plots do not have a maximum around EX=397 nm and EX=350 nm (±3 nm) the test fails, see figure below. Refer to Interpretation of the Results .
