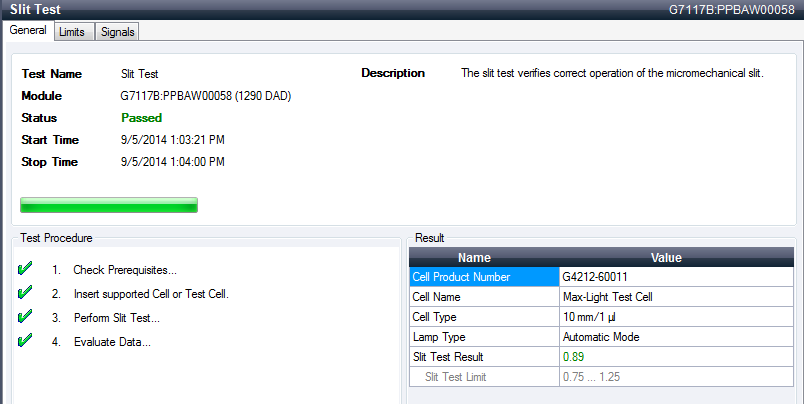

Slit Test (G7117B)

The slit test verifies correct operation of the micromechanical slit.

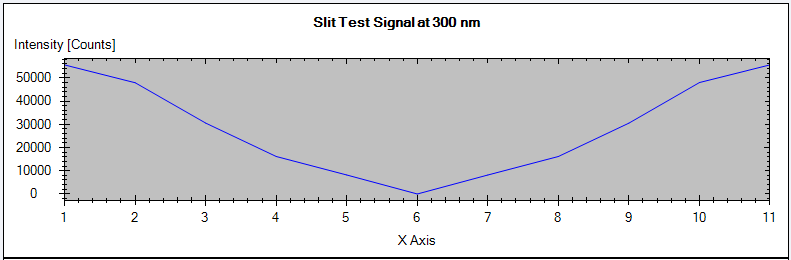

During the test, the slit is moved through all slit positions while the detector monitors the lamp intensity change. When the slit position is changed, the intensity drop (move to smaller slit) or intensity increase (move to larger slit) must be within a defined range.

If the intensity changes are outside the expected range, the test fails.

所需部件

数量		部件号	描述
1			最大光强卡套流通池（充满水）
1			最大光强卡套测试池
