Wavelength Verification Test

The detector uses the alpha (656.1 nm) and beta (486 nm) emission lines of the UV-lamp for wavelength calibration. The sharp emission lines enable accurate calibration. When verification is started, the 1-nm slit is moved into the light path automatically. The test is run with the Max-Light Cartridge Cell or with Max-Light Cartridge Test Cell installed.

If the test is performed with the Max-Light Cartridge Test Cell, the test results are not influenced by solvent or pump effects.

适用于

The detector is calibrated at the factory, and under normal operating conditions should not require recalibration. However, it is advisable to recalibrate:
after repair of components in the optical unit,
after exchange of the optical unit or main board,
after replacing the Max-Light Cartridge Cell or UV-lamp,
after significant environmental condition changes (temperature, humidity),
at a regular interval, at least once per year (for example, prior to an Operational Qualification/Performance Verification procedure), and
when chromatographic results indicate the detector may require recalibration.

所需部件

数量		部件号	描述
1			最大光强卡套测试池或
1			最大光强卡套流通池

前提条件

Lamp must be on for at least 10 minutes.
When using a Max-Light Cartridge Cell a flow rate of 0.5 mL/min with water is required.

Run the Wavelength Verification Test with the Agilent Lab Advisor (for further information see Online-Help of user interface).

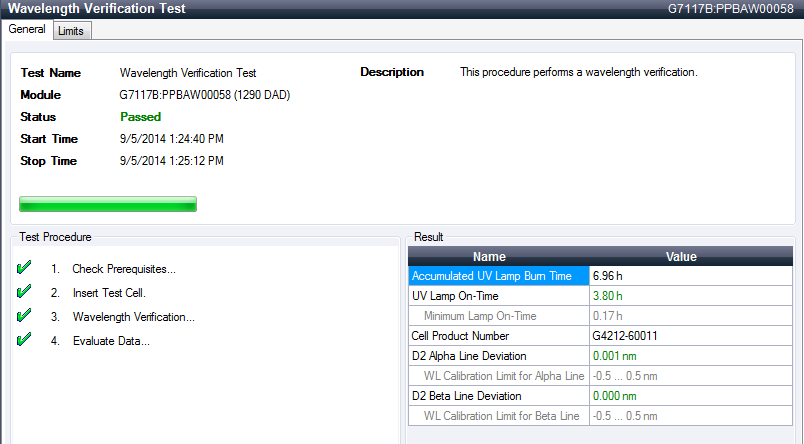

图: Wavelength Verification – Results
