Self-Test
The self-test runs a series of individual tests (described on the next pages), and evaluates the results automatically. The following tests are run:
Slit Test (G7117B only)
Dark Current Test
Intensity Test
Wavelength Verification Test
ASTM Noise Test, a simplified version of the ASTM Drift and Noise Test (without testing the Drift)
适用于
|
所需部件
数量 | 部件号 | 描述 | |
|---|---|---|---|
1 |
|
| 最大光强卡套流通池（充满水） , or |
1 |
|
| 最大光强卡套测试池 |
前提条件
|
-
Run the Self-Test with Agilent Lab Advisor (for further information see Online-Help of user interface).

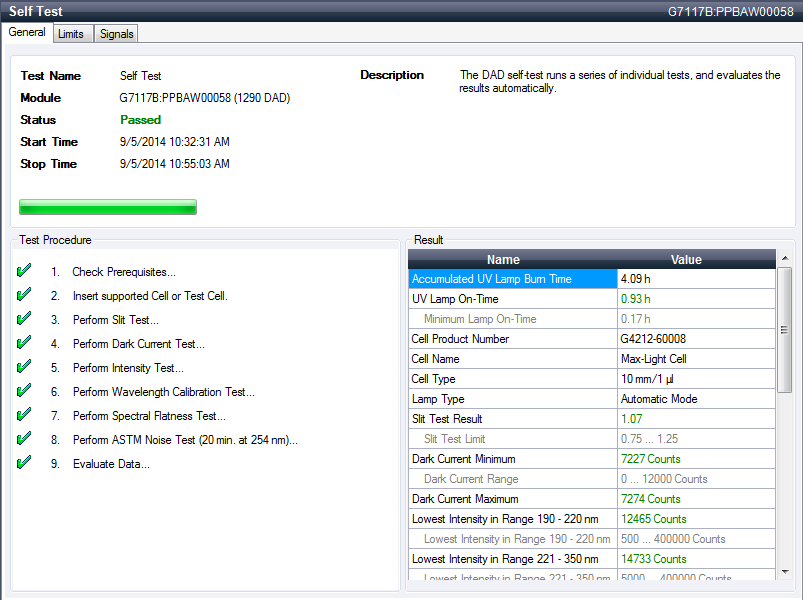

图: Self-Test – Results Under the tab Signals you can find the detailed signals from the tests.
