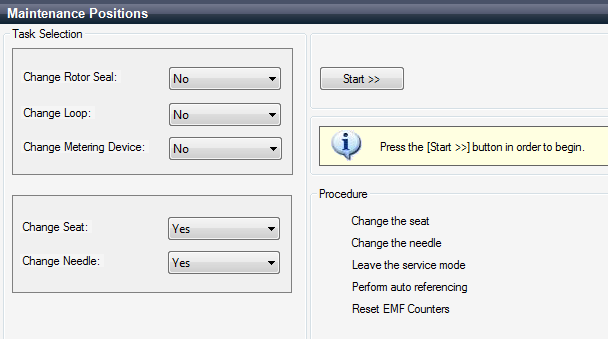

Change Needle Assembly
The Sample handler is positioning the needle assembly so that there is easy access for changing needle assembly or needle seat. The position is far to the left of the needle parkstation, and the current to the motors are off, so that the Z-drive of the robot can be moved while servicing the module.
注記
For safety reason you have to lock the needle assembly before you detach the needle from the robot. Refer to ニードルアセンブリの取り外し and ニードルアセンブリの取り付け.
注記
During normal operation the needle assembly has to be unlocked.
