Cell Test
The cell test measures the intensity of the UV-lamp over the full wavelength range (190 - 690 nm), once with the Max-Light Cartridge Cell installed, and once with the Max-Light Cartridge Test Cell. The resulting intensity ratio is a measure of the amount of light absorbed by the Max-Light Cartridge flow cell. The test can be used to check for dirty or contaminated flow cell windows. When the test is started, the 1-nm slit is moved into the light path automatically (G7117B only). On the G7117A/G7117C, the 4 nm fixed slit is used.
This test should be performed initially with a new detector/flow cell. The values should be kept for later reference/comparison.
実行するタイミング
|
必要な部品
数量 | 部品番号 | 説明 | |
|---|---|---|---|
1 |
|
| Max-Light カートリッジセル（水を充填） |
1 |
|
| Max-Light カートリッジテストセル |
前提条件
|
Run the Cell-Test with Agilent Lab Advisor (for further information see Online-Help of user interface).

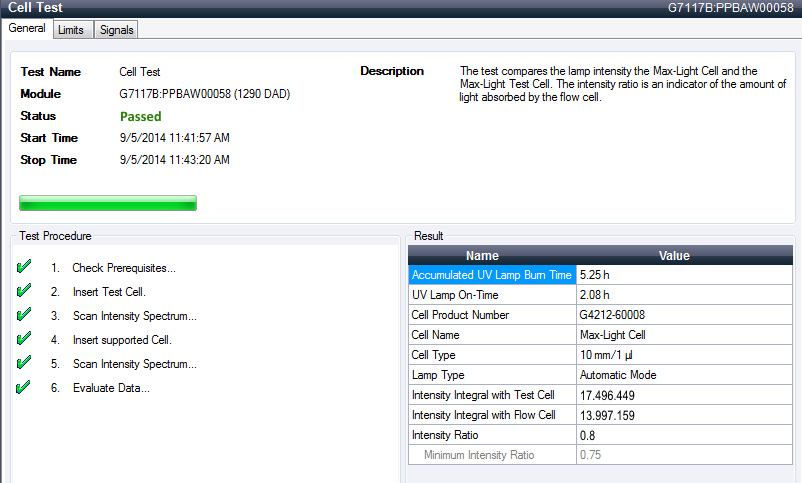

図: Cell Test – Results
図: Cell Test – Signals (example shows low intensity for flow cell)
