Online Signal Monitoring

In the Online Signals tab of the CDS, the actual temperature of the sample space can be configured and plotted together with the other instrument actuals. This enables the user to have a better overview of how the temperature changes over time.

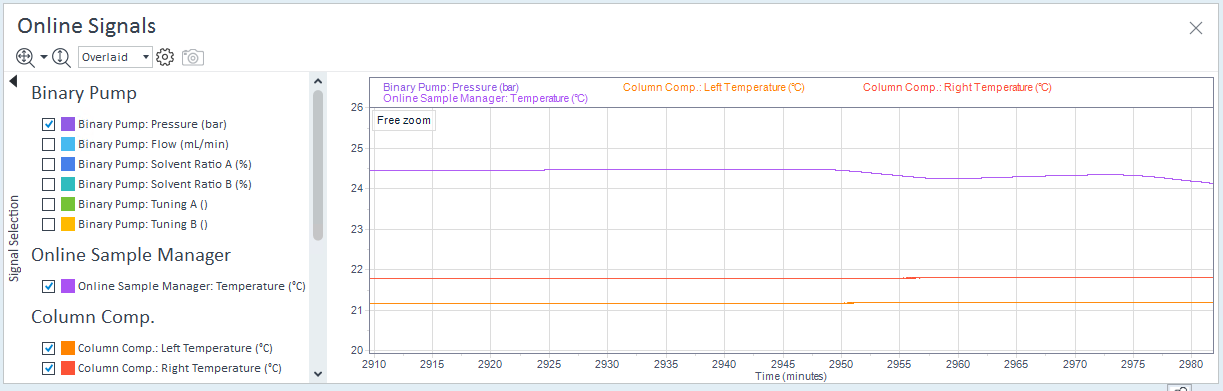

Online Signals tab — Figure: Online Signals tab
