Hardware Configuration Settings
Example shows an instrument configuration with a Diode Array Detector.
-
Set the switches of the Configuration switch at the rear of the module:
- All switches DOWN: module uses the default IP address 192.168.254.11.
- Switch 4 UP and others DOWN: module uses DHCP.
- Switch 5 UP and others DOWN: modules uses STORED address.
NOTE
For more details about the configuration switch settings, see Setting the 6-bit Configuration Switch.
Enter the setup information (MACMAC address can only be used in DHCP DIP-switch configuration / IP address and/or Instrument Name) in the Control or Diagnostic software.

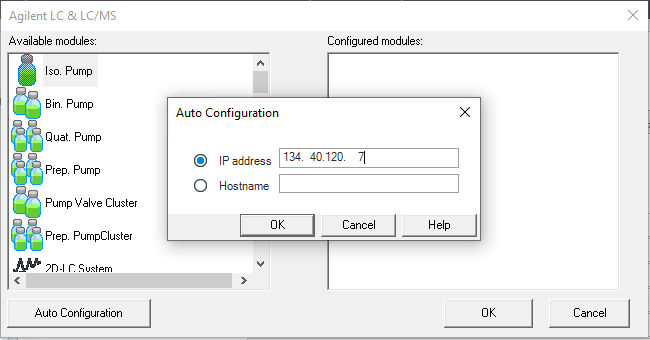

- Agilent OpenLab CDS (Configure Instrument):
- Lab Advisor (Instrument Overview - Add Instrument):
