CDS Required
Enabling CDS Required
When the feature CDS Required is activated, every action that change instrument parameters is logged in the Chromatography Data System (CDS).
- To use the function CDS Required, an LC/CE Driver version 3.8 or higher is required. If you are using a lower version, please keep this feature disabled.
Log in to the Assist Control Software as administrator.
Under
Settings > Security, enable CDS Required.

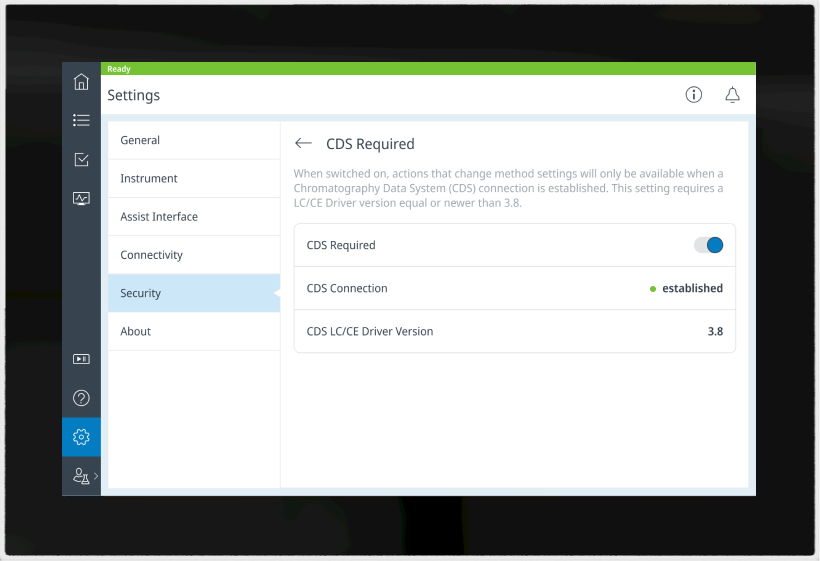

Figure: Enabling CDS Required
- All actions that change instrument settings are available when the CDS connection is established.
When CDS Required is enabled and the CDS connection is not present, the Assist Control Software switches to a mode in which most functions are read-only.
Run Control Color Coding
In the Run Control, the status of the CDS Required setting is displayed.
The following colors can be displayed depending on your settings:
LC/CE Driver version 3.8 | CDS Required is enabled | CDS Required is disabled |
|---|---|---|
connected | green | green |
not connected | red | gray |
