Device Connection
CAUTION
Damage to the module
The Assist Hub consists of a Power over Ethernet (PoE) connector. A typical LAN cable could result in issues powering the Assist Interface.
- Use a Power over Ethernet (PoE) cable for the Power over Ethernet (PoE) connector of the Assist Hub.
- All modules in the system are turned off.

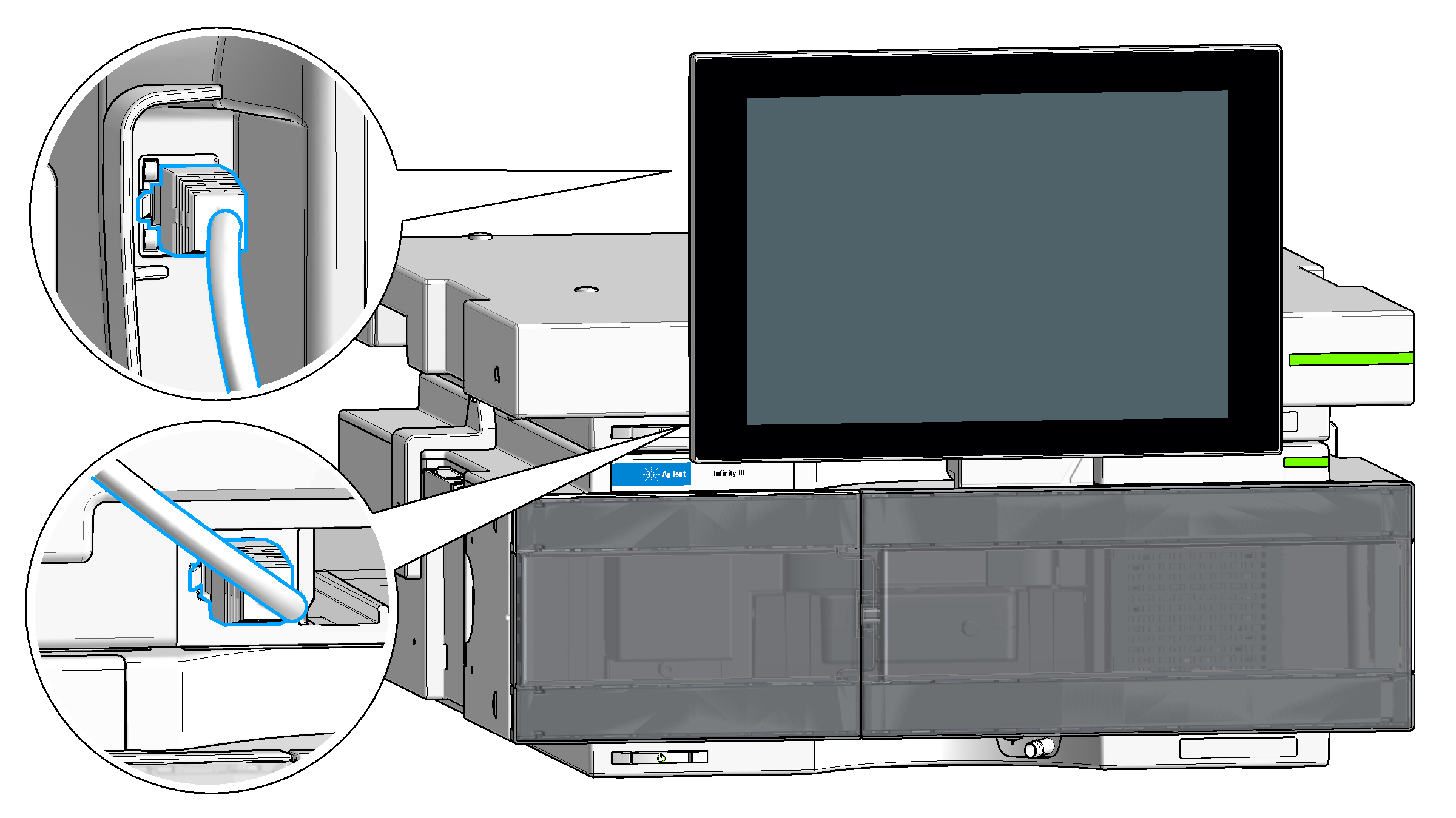

Connect the Power over Ethernet (PoE) cable to the connection on the back of the Assist Interface. Install the other end of the cable at the front of the Assist Hub.
At the back of the Assist Hub, insert a CAN cable into the CAN port of the module to communicate over the CAN bus.
Establish LAN connections to the Assist Hub with all detectors and pumps in the stack. Insert 5023-0203 (Cross-over network cable, shielded, 3 m) into the ports labeled Module LAN.
Install a Lab LAN for communication purposes. Lab LAN is reserved for the system connection to the PC or laboratory LAN infrastructure.
Install the power cable into the Assist Hub and then attach it to the power source.
Figure: The figure shows a 1290 Infinity III System with proper cabling and an ERI cable to a third-party device. Turn on all the modules including the Assist Interface.
