Stacking the InfinityLab Assist

WARNING

Risk of injury due to extended positioning of the holder in stand-by mode

If the arm of the holder is extended, there is a risk of catching on the InfinityLab Assist Interface. People passing by can get injured and the InfinityLab Assist Interface or other parts of the stack can be damaged. Solvent bottles in the solvent cabinet or the InfinityLab Level Sensing module above the InfinityLab Assist Hub can fall down if they are exposed to mechanical shocks.

• After use, return the InfinityLab Assist Interface to the home position: Move the InfinityLab Assist Interface to the highest position against the solvent cabinet or InfinityLab Level Sensing module.

WARNING

Improper installation of safety clips

If the InfinityLab Assist Interface is moved over the holder and the safety clips are not properly installed, the InfinityLab Assist Hub and Solvent Cabinet/Solvent Level Sensing can be lifted. This can result in personal injury and damage of the modules.

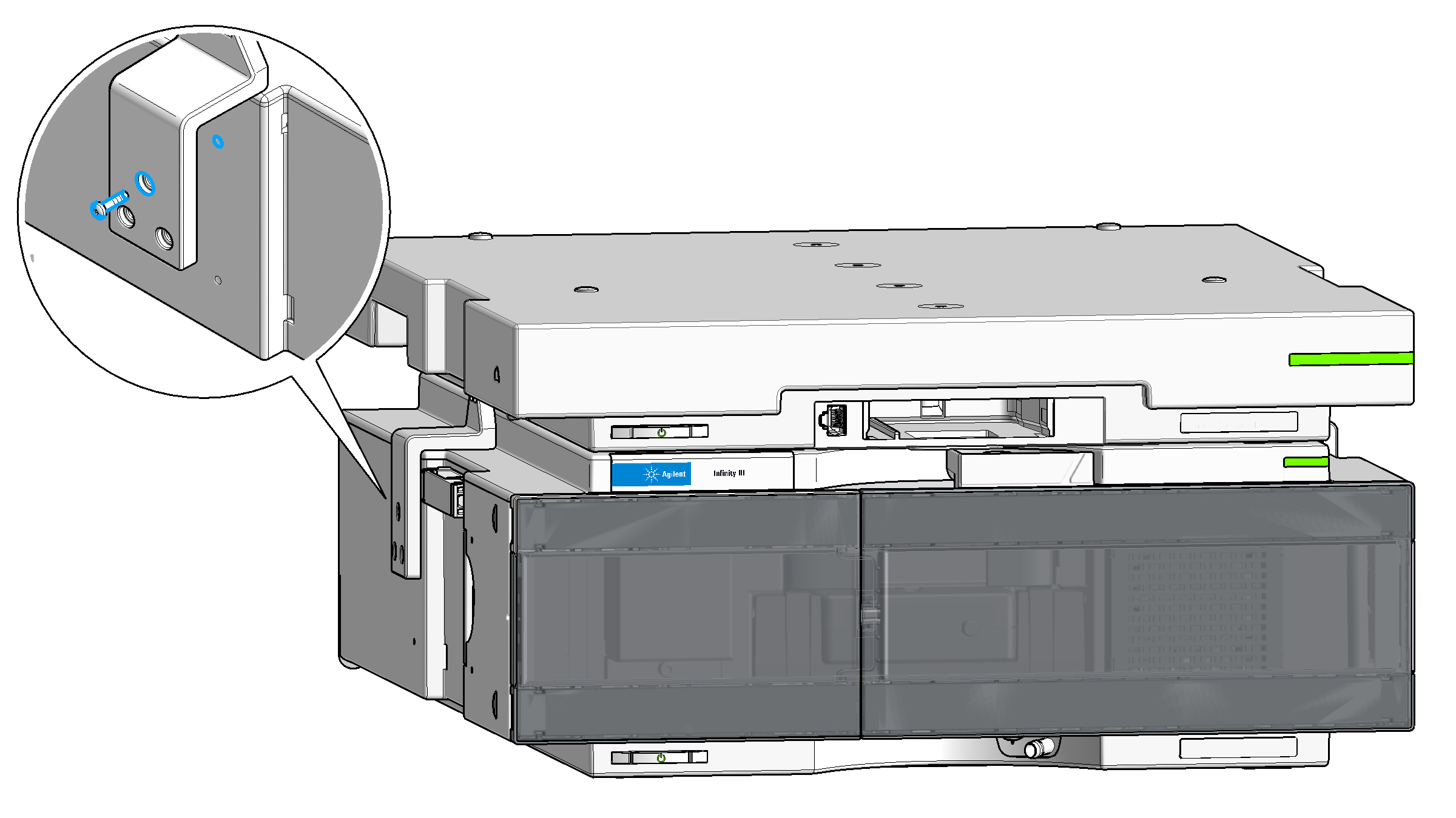

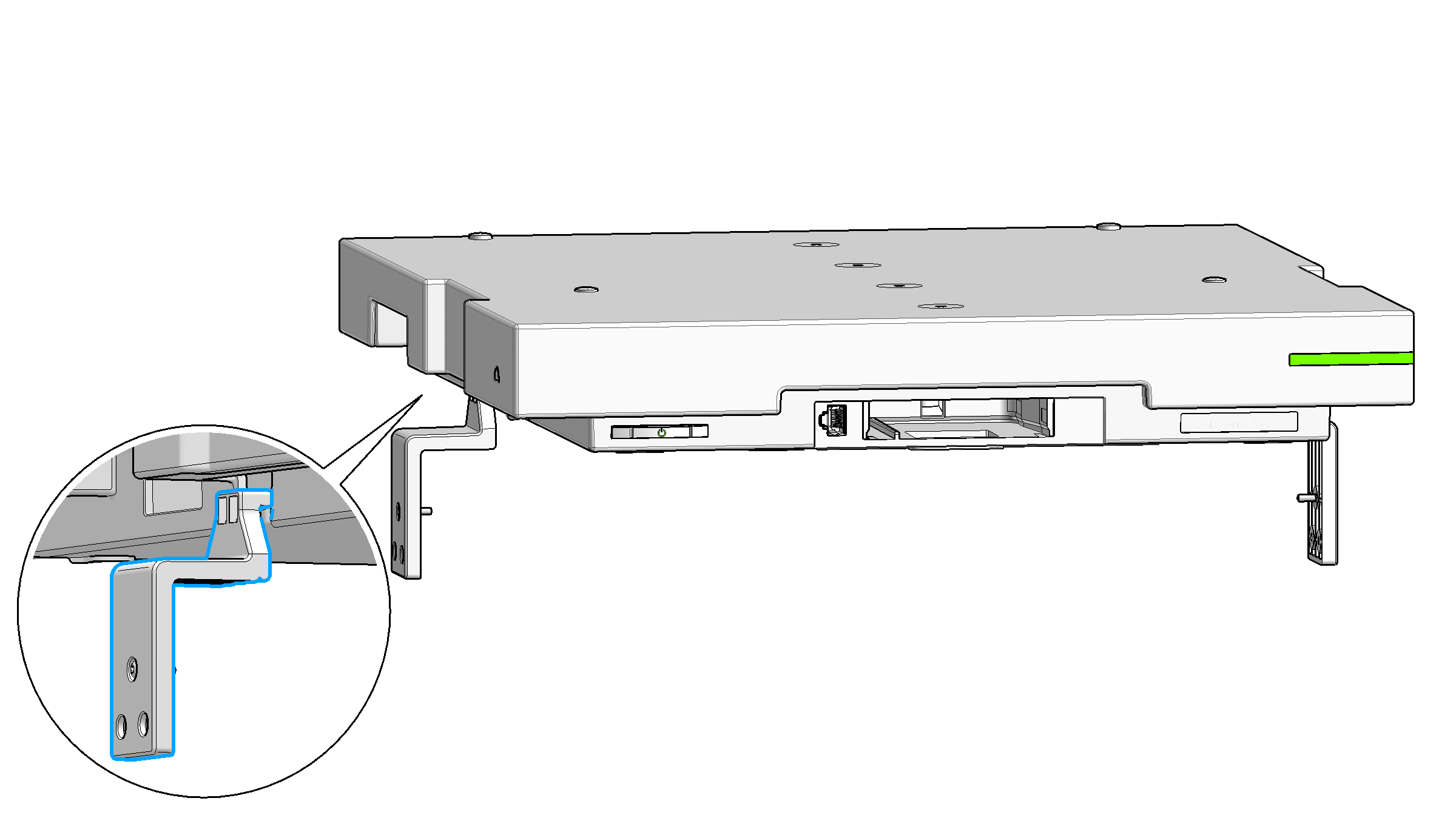

• Attach a safety clip to the right and left of the InfinityLab Assist Hub. Screw the safety clips into the module below the InfinityLab Assist Hub.

CAUTION

Improper installation of Display Holder

If the Display Holder with the attached InfinityLab Assist Interface is not properly inserted into the InfinityLab Assist Hub, the InfinityLab Assist Interface may fall out and get damaged.

• Install the Display Holder correctly on the InfinityLab Assist Hub according to the instructions.

NOTE

In a Flex Bench installation, the Assist Hub must always be installed on a shelf, stacked with an additional module and secured with safety clips.
