Replace the Seal Wash Sensor
Parts required
Qty. | p/n | Description | |
|---|---|---|---|
1 |  | 5067-6172 | Seal Wash Sensor Pre Assembly |
Prerequisites
|
-
Remove the solvent inlet and outlet tubes from the seal wash sensor.
-
Press at the sides of the seal wash sensor.
-

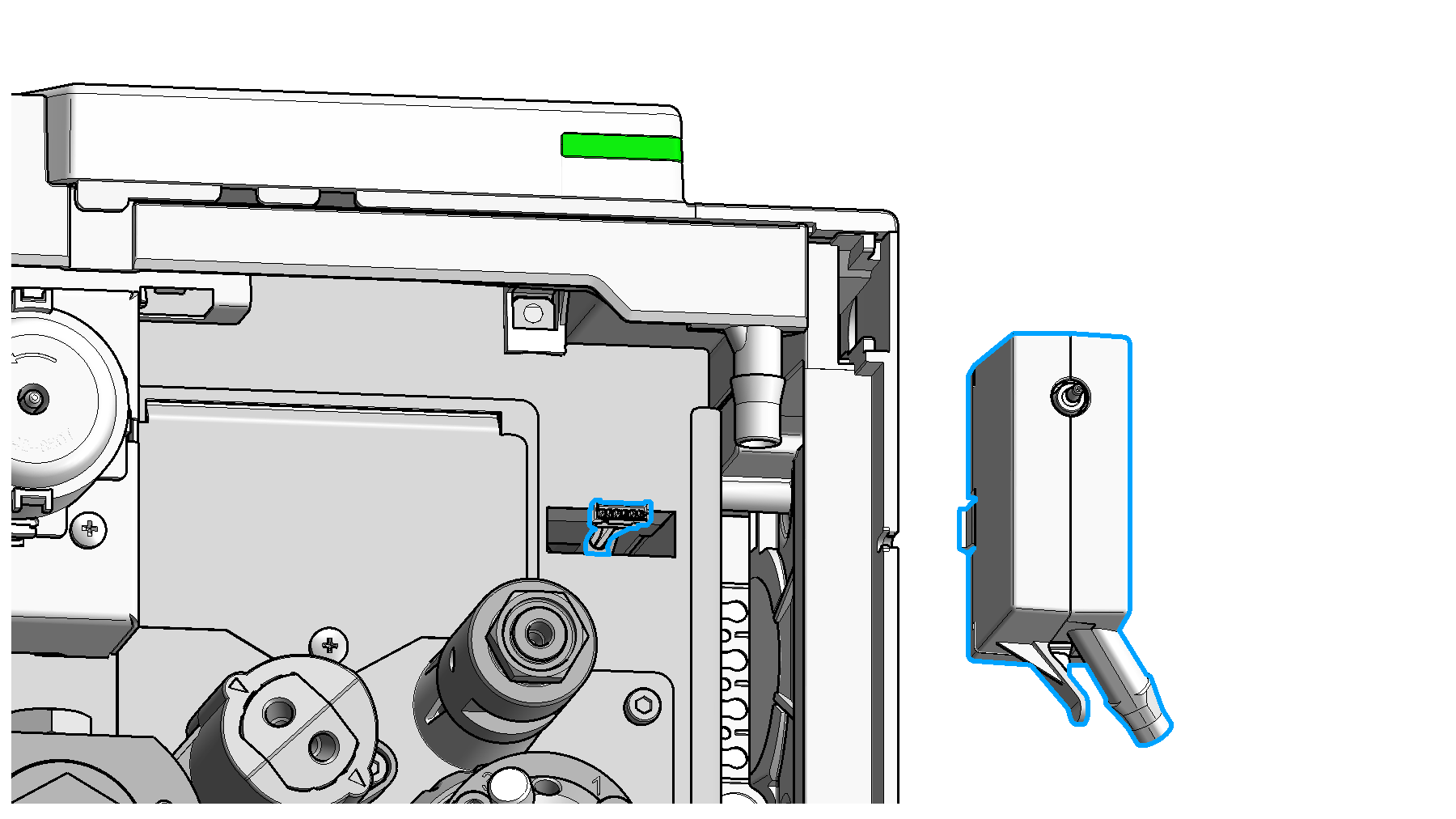

Remove the seal wash sensor from the module chassis.
-
Remove the cable.
Remove the seal wash sensor completely.
-
Connect the cable to the new seal wash sensor.
-
Install the new sensor to the module chassis.
-
Install the solvent inlet and outlet tubes to the seal wash sensor.
