How to Import the Latest Solvent Calibration Tables
It might be necessary to import new Agilent Solvent Calibration tables that were not previously available with the system. This will then provide the most accurate algorithm in determining the compressibility of the mobile phase.
The procedure for importing the latest solvent calibration tables is as follows:

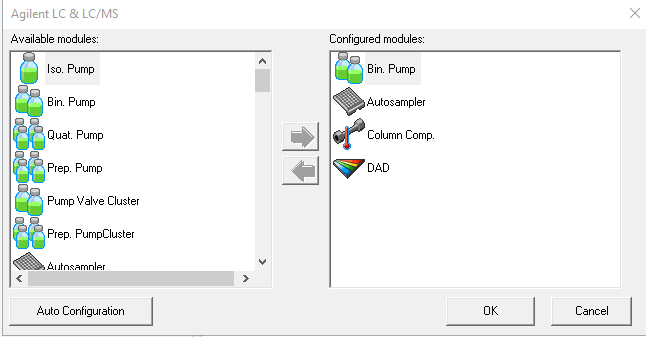

Enter the Instrument configuration of the Agilent LC Driver.
Click on the module that needs the latest solvent calibration table (ie G7120A). Then choose configure, launching the additional configuration of the pump module.
-

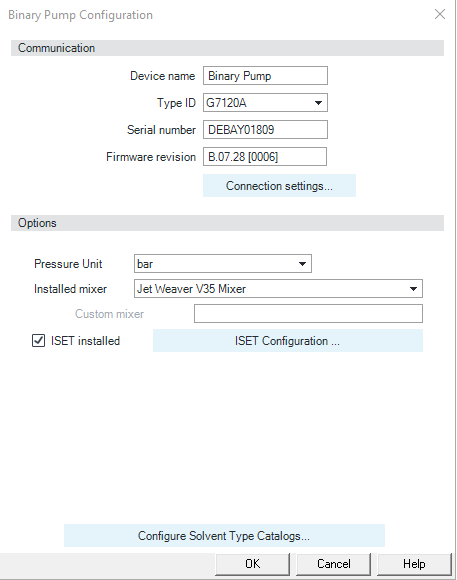

In the additional configuration of the pump module, choose Configure Solvent Type Catalogs…
-

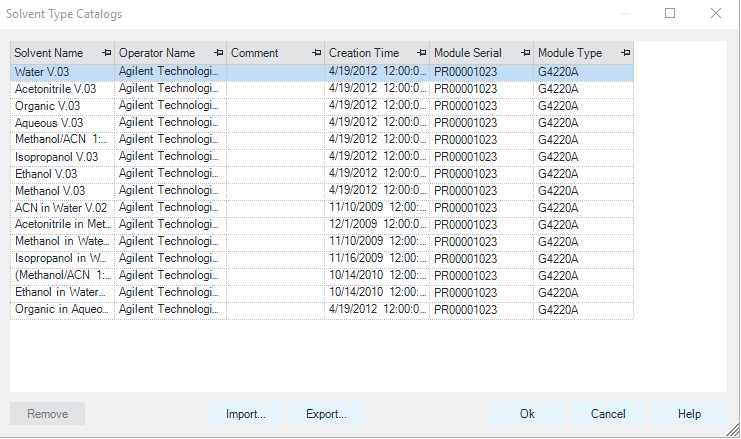

In the Solvent Type Catalogs, press the Import button.
-
Navigate to the location of the downloaded Agilent Solvent Calibration Table and click the Open button. Keep in mind multiple solvent calibration tables may be imported at the same time.
-

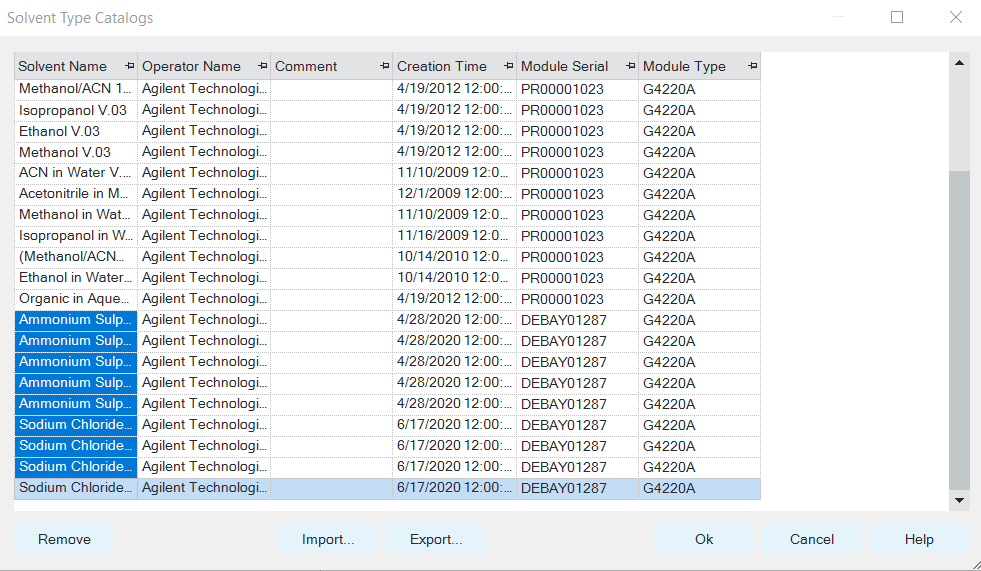

The imported solvent table will now appear in the Solvent Type Catalogs.
The imported solvent table is now available for selection in the Method Settings of the pump module.
