Replace the Deuterium Lamp
When
|
Tools required
Qty. | p/n | Description | |
|---|---|---|---|
1 |
|
| Screwdriver POZI 1 PT3 |
Parts required
Qty. | p/n | Description | |
|---|---|---|---|
1 | | 5190-0917 | Long-life Deuterium lamp (8-pin) with RFID tag |
Prerequisites
|
WARNING
Injury by touching hot lamp
If the detector has been in use, the lamp may be hot.
- If so, wait for lamp to cool down.
NOTE

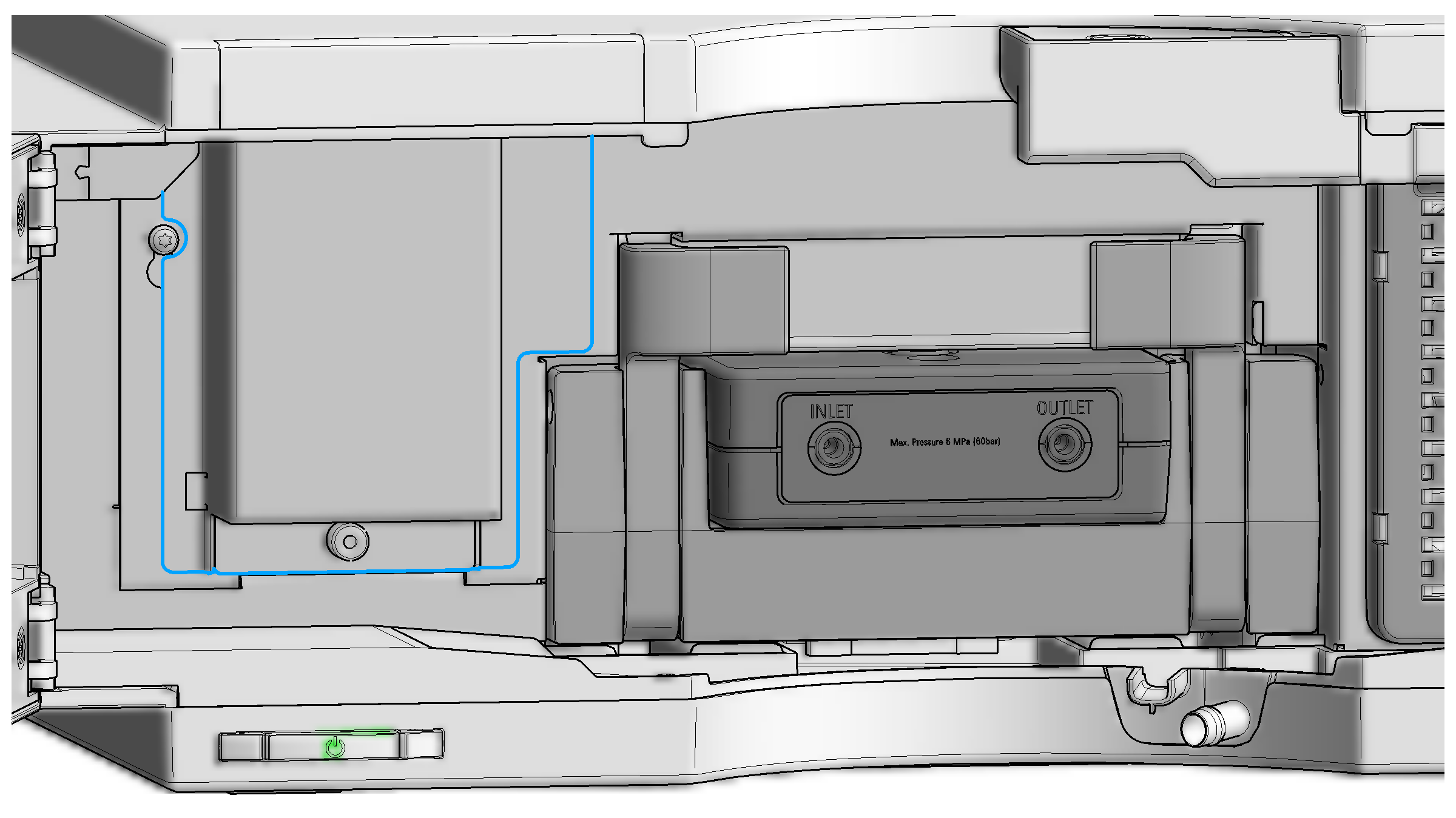

The lamp house cover includes a magnet.
-
-
-
-
-
Do not touch the glass bulb with your fingers. It may reduce the light output.
-
Place the lamp cable in the lamp cover.
-
-
-
Perform a Wavelength Re-calibration after lamp warm-up.
