Instrument Configuration
Example shows an instrument configuration with a Diode Array Detector.
Set the switches of the Configuration switch at the rear of the module:
- All switches DOWN: module uses the default IP address 192.168.254.11.
- Switch 4 UP and others DOWN: module uses DHCP.
- Switch 5 UP and others DOWN: modules uses STORED address.
Enter the setup information (MACMAC address can only / IP address and/or Instrument Name).

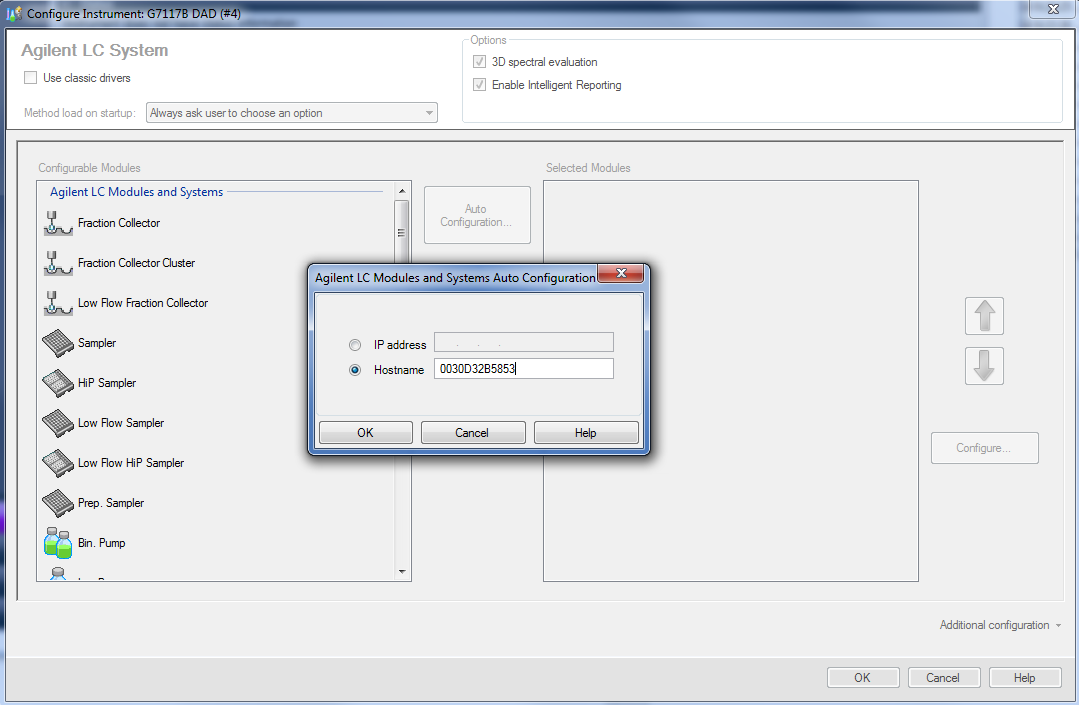

- Agilent OpenLab ChemStation (Configure Instrument):

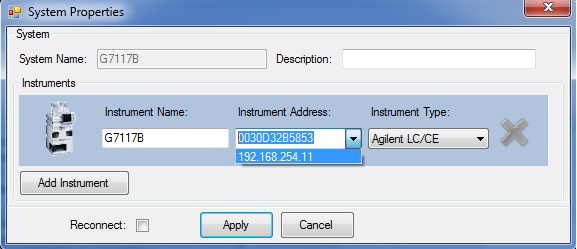

- Lab Advisor (Instrument Overview - Add Instrument):
