Analog Cables
One end of these cables provides a BNC connector to be connected to Agilent modules. The other end depends on the instrument to which connection is being made.

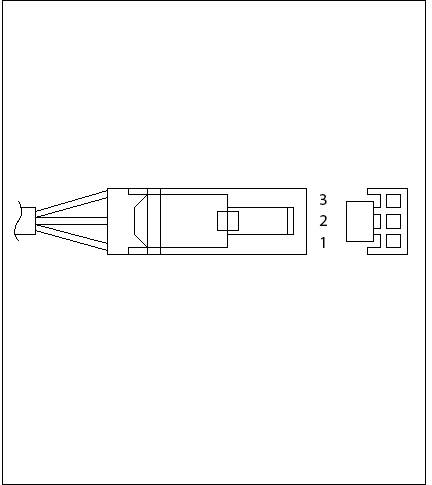

Agilent Module to 35900 A/D converters
p/n 35900-60750 | 35900 | Pin Agilent module | Signal Name |
|---|---|---|---|
| 1 |
| Not connected |
2 | Shield | Analog - | |
3 | Center | Analog + |
Agilent Module to BNC Connector
p/n 8120-1840 | Pin BNC | Pin Agilent module | Signal Name |
|---|---|---|---|
| Shield | Shield | Analog - |
Center | Center | Analog + |

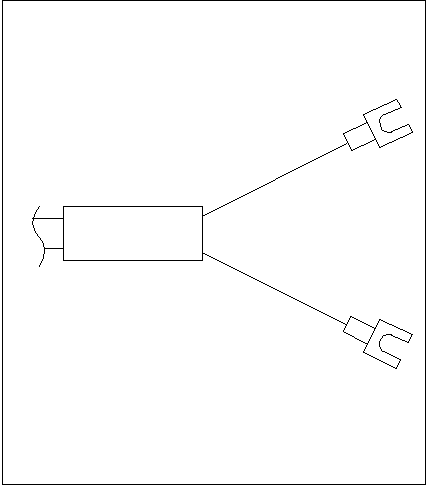

Agilent Module to General Purpose
p/n 01046-60105 | Pin | Pin Agilent module | Signal Name |
|---|---|---|---|
| 1 |
| Not connected |
2 | Black | Analog - | |
3 | Red | Analog + |
