Status Indicators

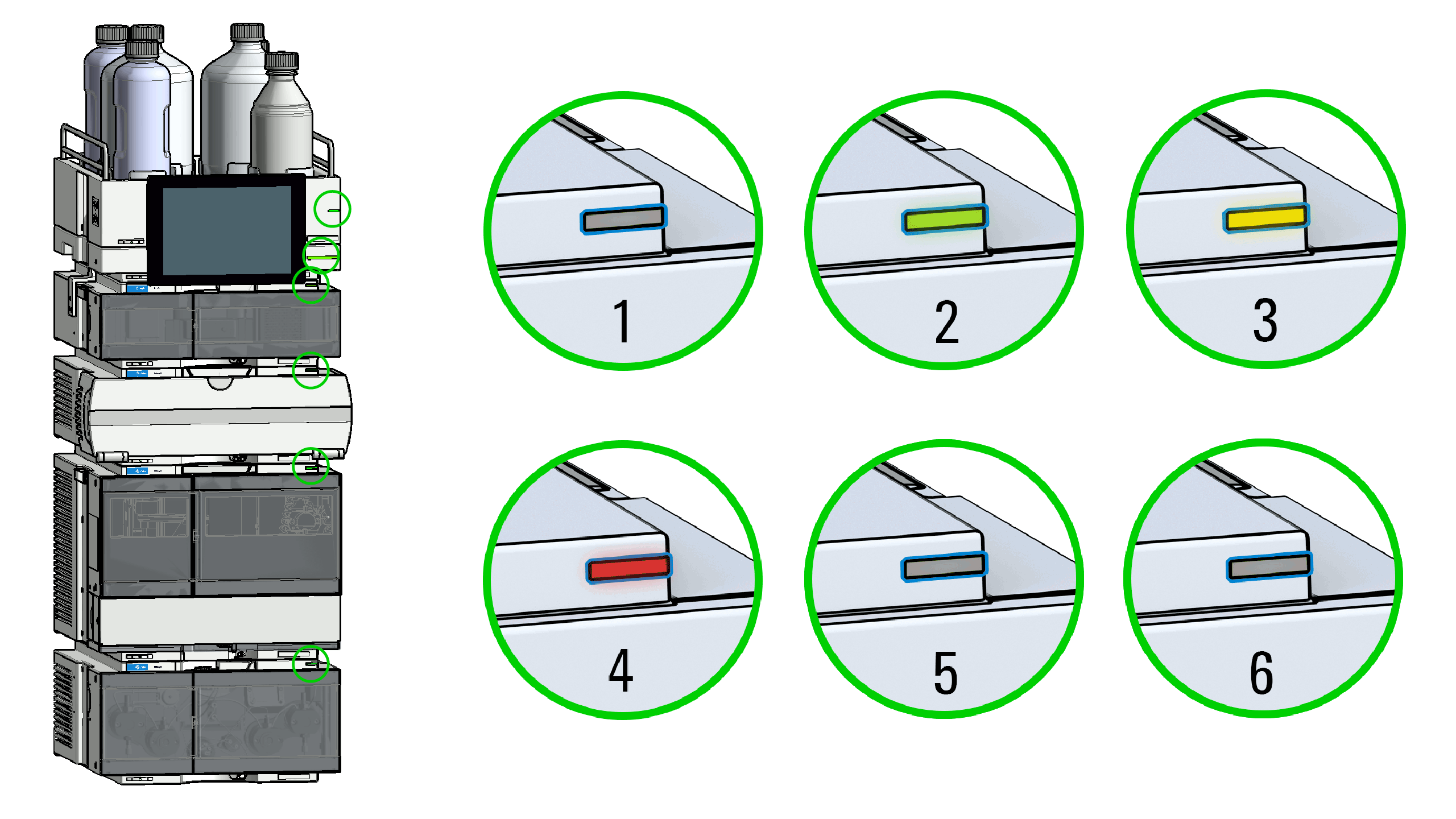

The module status indicator indicates one of six possible module conditions.
where
1 | Idle | 2 | Run mode |
3 | Not-ready. Waiting for a specific pre-run condition to be reached or completed. | 4 | Error mode - interrupts the analysis and requires attention (for example, a leak or defective internal components). |
5 | Resident mode (blinking) - for example, during update of main firmware. | 6 | Bootloader mode (fast blinking). Try to re-boot the module or try a cold-start. Then try a firmware update. |
InfinityLab Assist Hub Status Indicator
The Assist Hub status indicator displays the status of the entire system. If a module in the system is not ready (yellow), the Assist Hub status indicator also shows not ready (yellow). The same applies for the module conditions Idle, Run mode, and Error mode.
