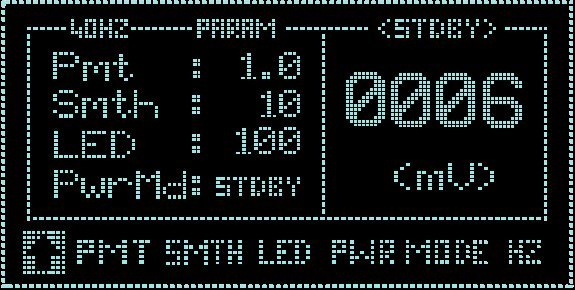

Submenu Screen

The submenu screen is accessed from the front screen by selecting the ↓ key: This screen allows changes to the following electronic parameters:

Pmt	Set Signal Gain
Smth	Set Time Constant
LED	Set Light Source Intensity
PwrMd	Set Mode of ELSD when powered up
HZ	Set Data Output Rate
LAN	Displays the instruments TCP/IP settings With serial connection option displays “Instrument Configured for RS-232”
