Display Screen

Display Screen

The graphical interface on the front of the instrument displays the current method, status, evaporator temperature, nebulizer temperature, gas flow, and output of the instrument. Operating parameters can be altered via the interactive menu bar at the bottom of the display.

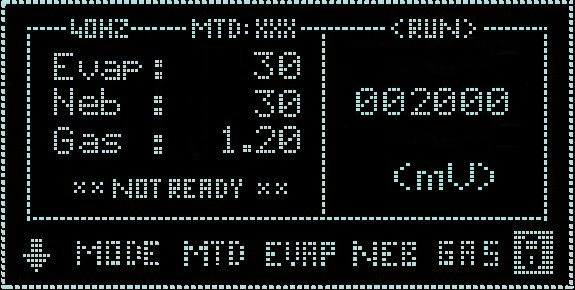

ELSD display screen — Figure: ELSD display screen
