The Detector User Interface

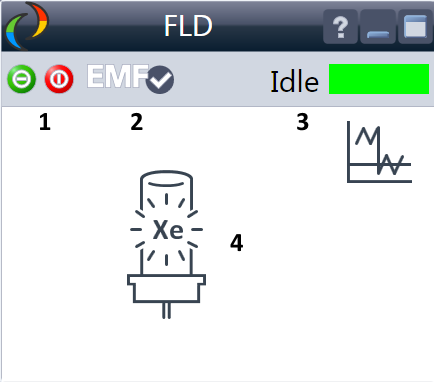

Within the detector GUI, there are active areas. If you move the mouse cursor across the icons the cursor will change.

Lamp: turn on and off of UV-lamp
EMF status
Detector status
Lamp status (on/off)

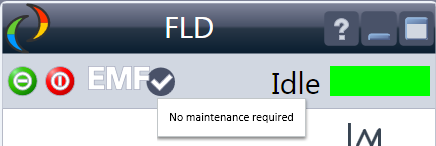

EMF Status shows Run / Ready / Error state and “Not Ready text” or “Error text”

Offline (gray)
Ok. No Maintenance required (green)
EMF warning. Maintenance might be required (yellow)
EMF warning. Maintenance required (red)

Important: The EMF settings can be accessed via Agilent Lab Advisor. The limit(s) can be changed. Based on the limit, the User Interface displays the above status.

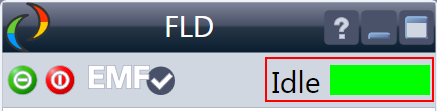

Module Status shows Run / Ready / Error state and “Not Ready text” or “Error text”

Error (red)
Not ready (yellow)
Ready (green)
Pre run, Post run (purple)
Run (blue)
Idle (green)
Offline (dark gray)
Standby (light gray)

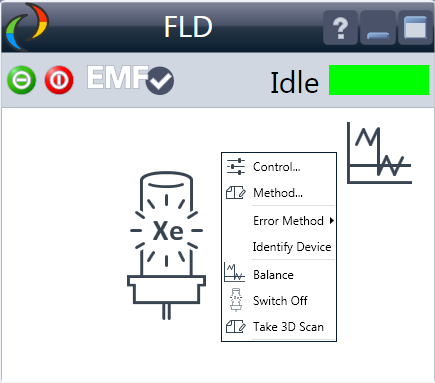

A right-click into the Active Area will open a menu to

Show the Control Interface (special module settings)
Show the Method interface (similar as via menu Instrument > Setup Instrument Method )
Set Error Method
Identify Module (Status LED will blink)
Perform a Balance
Switch the lamp on/off (same as click on button “Make Device Ready/Turn device off (standby)”)

NOTE: The Balance icon is used for UV detectors and has no function on the FLD.
