BCD Cables

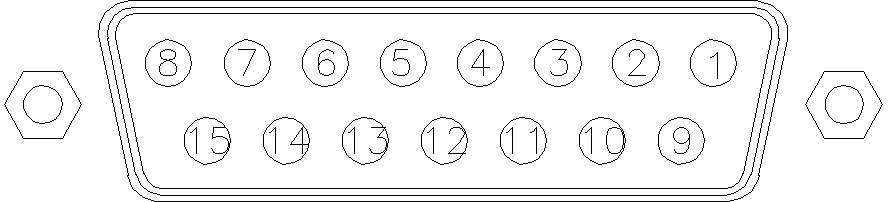

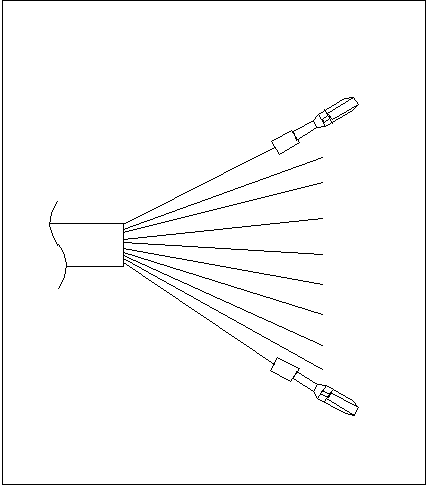

One end of these cables provides a 15-pin BCD connector to be connected to the Agilent modules. The other end depends on the instrument to be connected to

Agilent Module to General Purpose

Wire Color	Pin Agilent module	Signal Name	BCD Digit
Green	1	BCD 5	20
Violet	2	BCD 7	80
Blue	3	BCD 6	40
Yellow	4	BCD 4	10
Black	5	BCD 0	1
Orange	6	BCD 3	8
Red	7	BCD 2	4
Brown	8	BCD 1	2
Gray	9	Digital ground	Gray
Gray/pink	10	BCD 11	800
Red/blue	11	BCD 10	400
White/green	12	BCD 9	200
Brown/green	13	BCD 8	100
not connected	14
not connected	15	+ 5 V	Low

Agilent Module to 3396 Integrators

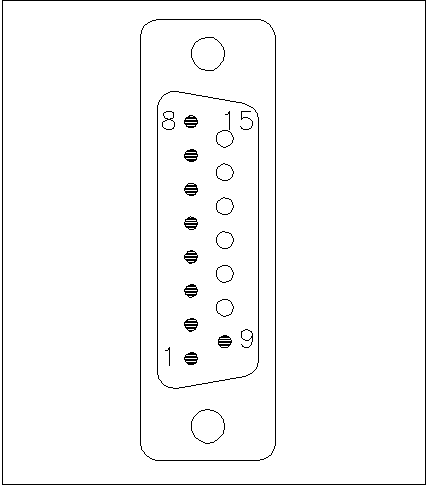

Pin 3396	Pin Agilent module	Signal Name	BCD Digit
1	1	BCD 5	20
2	2	BCD 7	80
3	3	BCD 6	40
4	4	BCD 4	10
5	5	BCD0	1
6	6	BCD 3	8
7	7	BCD 2	4
8	8	BCD 1	2
9	9	Digital ground
NC	15	+ 5 V	Low
