With the Instant Pilot (G4208A)
To configure the TCP/IP parameters before connecting the module to the network, the Instant Pilot (G4208A) can be used.
-
From the Welcome screen press the More button.
-
Select Configure.
-
Press the module button of the module that hosts the LAN interface (usually the detector).
Scroll down to the LAN settings.

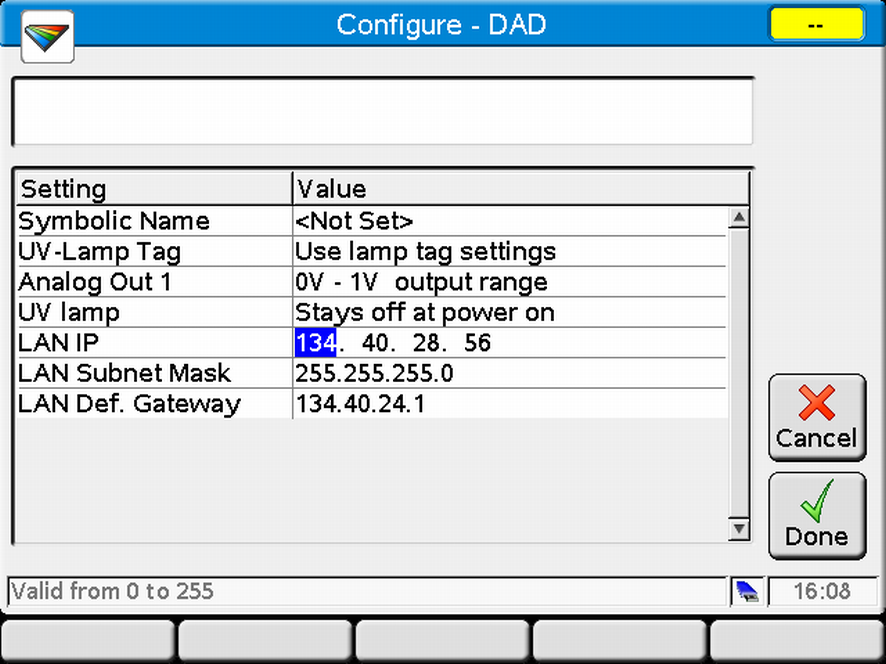

Figure: Instant Pilot - LAN configuration (edit mode) -
Press the Edit button (only visible if not in Edit mode), perform the required changes and press the Done button.
-
Leave the screen by clicking Exit.
