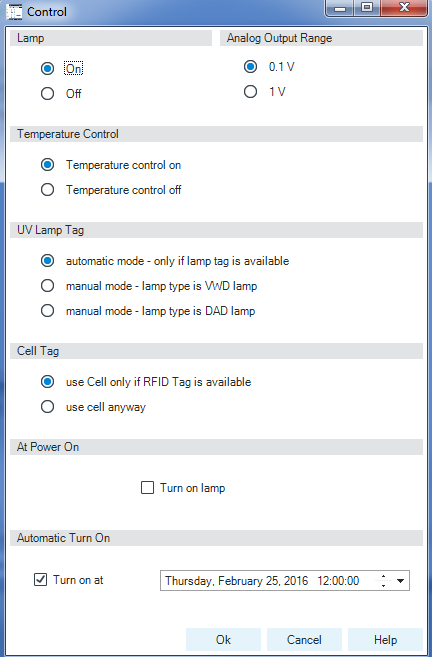

| The figure shows the default settings.
Lamps: can be turned ON/OFF. Analog Output Range: can be set to either 100 mV or 1 Vfull scale, for additional settings see “Analog” (under Method Parameter Settings). Temperature Control: The optical unit is kept on constant temperature (some degrees above ambient) and improves the baseline stability in unstable environments, see also Environment. If the flow cell temperature is critical for your chromatography or your environment is stable, you may set the Temperature Control to off. This will lower the optical unit and flow cell temperature by some degree. UV Lamp Tag Automatic detects a lamp with RFID tag. If no RFID tag lamp is used, “UV lamp not ready” is displayed and it cannot be ignited. A compatible mode has to be selected based on the used lamp; see Non-RFID-tag lamp information below. Manual (by PN) uses the selected “heating” mode. This mode can also be used when the RFID tag of the standard lamp (G1314-60101) is not recognized (defect RFID tag or reader). Non-RFID-tag lamp: In case a non-RFID-tag lamp is used, the user interface will show this when selecting a compatible mode. You may operate the detector outside of the guaranteed specification. The correct selection is important for optimal performance and lifetime.
Cell Tag: Automatic mode for Agilent flow cells with RFID tags. If no RFID tag cell is used, detector icon will become gray (cell tag not ready) and analysis is disabled. At Power On: automatic lamp-on at power on. Automatic Turn On: automatic detector power on.
|
