Thermostat Test
Thermostat Test Description
The Thermostat Test is used to evaluate the cooling and heating performance of the two Peltier elements.
The instrument starts the test when the heater temperature is within 5 °C of the current measured ambient temperature. After the start, the instrument is cooling down to 4 °C below the starting temperature. The cool-down time is used to determine the cooling performance. In the next step, the heating performance is calculated by heating up to the test starting temperature.
Thermostat Test Result

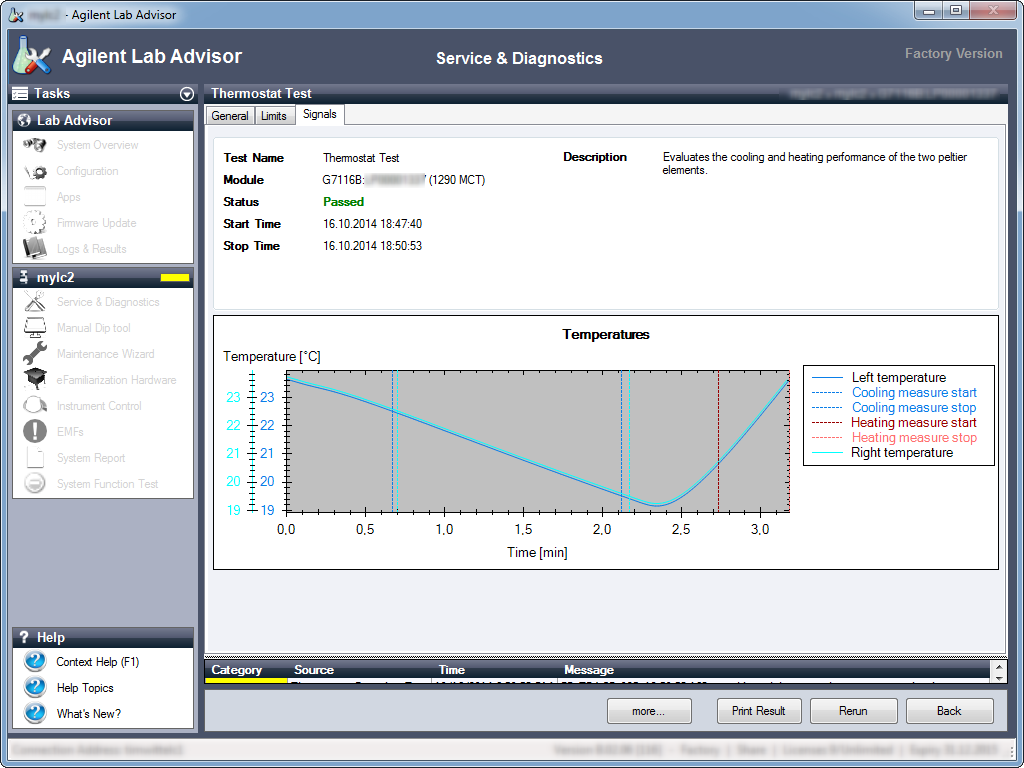

A typical Thermostat Test profile is shown below.
