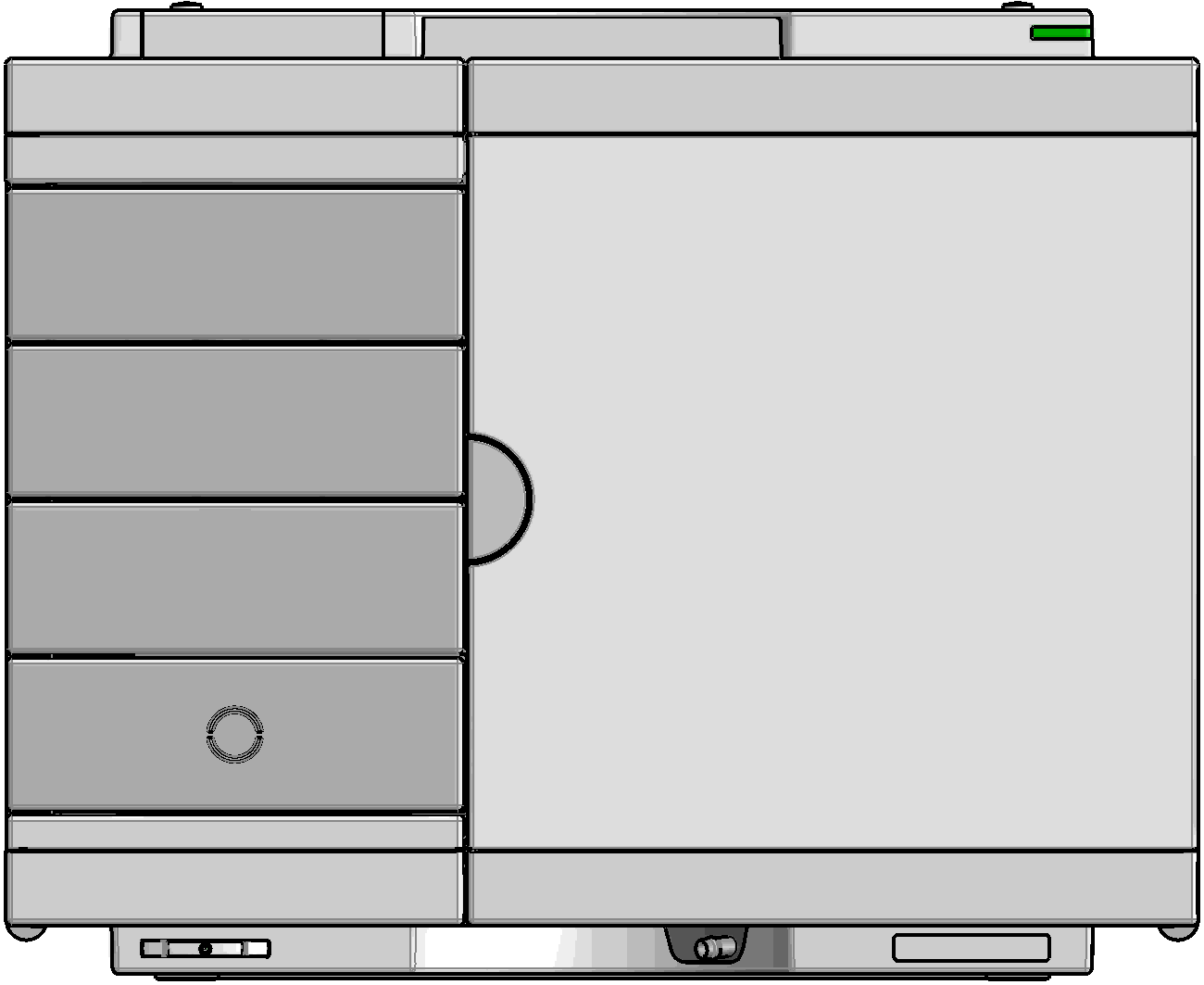

Optional Configurations
|
| 1H | 2H | 3H | Dummy-Drawer |
|---|---|---|---|---|---|
| Delivery Status | - | G7167-60020 1x | - | G4267-60024 3x |
| Up to 8 single height drawers 16 positions Shallow wellplates and MTP Max Sample capacity 1536 / 6144 samples (96 Shallow Wellplates / 384 MTP) | G7167-60021 8x | - | - | - |
| Up to 4 Dual Height drawers 8 positions Vials (2 mL), deep well plates, MTP, Eppendorf Max Sample capacity 432 / 3072 samples (2 mL Vials/ 384 MTP) | - | G7167-60020 4x | - | - |
| Up to 2 Drawers Triple Height 4 positions (2H or 2*1H option left over) Vials (6 ml), deep well plates, MTP, Eppendorf Max Sample capacity 60 / 216/ 1536 samples (6 mL Vials/ 2 mL Vials/ 384 MTP) | - | G7167-60020 1x | G7167-60022 2x | - |
NOTE
Mixed configurations are possible (for example 1x3H- with 1x2H- and 3x1H-drawer).
All positions in the Sample Hotel must be filled either with dummies or drawers. The drawers must be installed from bottom to top.
