Install the Column Shelf

Tools required

Qty.		p/n	Description
2		8710-0510	Open-end wrench 1/4-5/16 inch

Parts required

Qty.		p/n	Description
1		G7129-60023	Column Shelf

Prerequisites

Finish any pending acquisition job.
Stop the flow at the pump and remove the solvent lines from the eluent bottles to avoid spilling solvent.
Close the shutoff valves at the pump if available.
Switch off the sampler and disconnect it from the power supply.

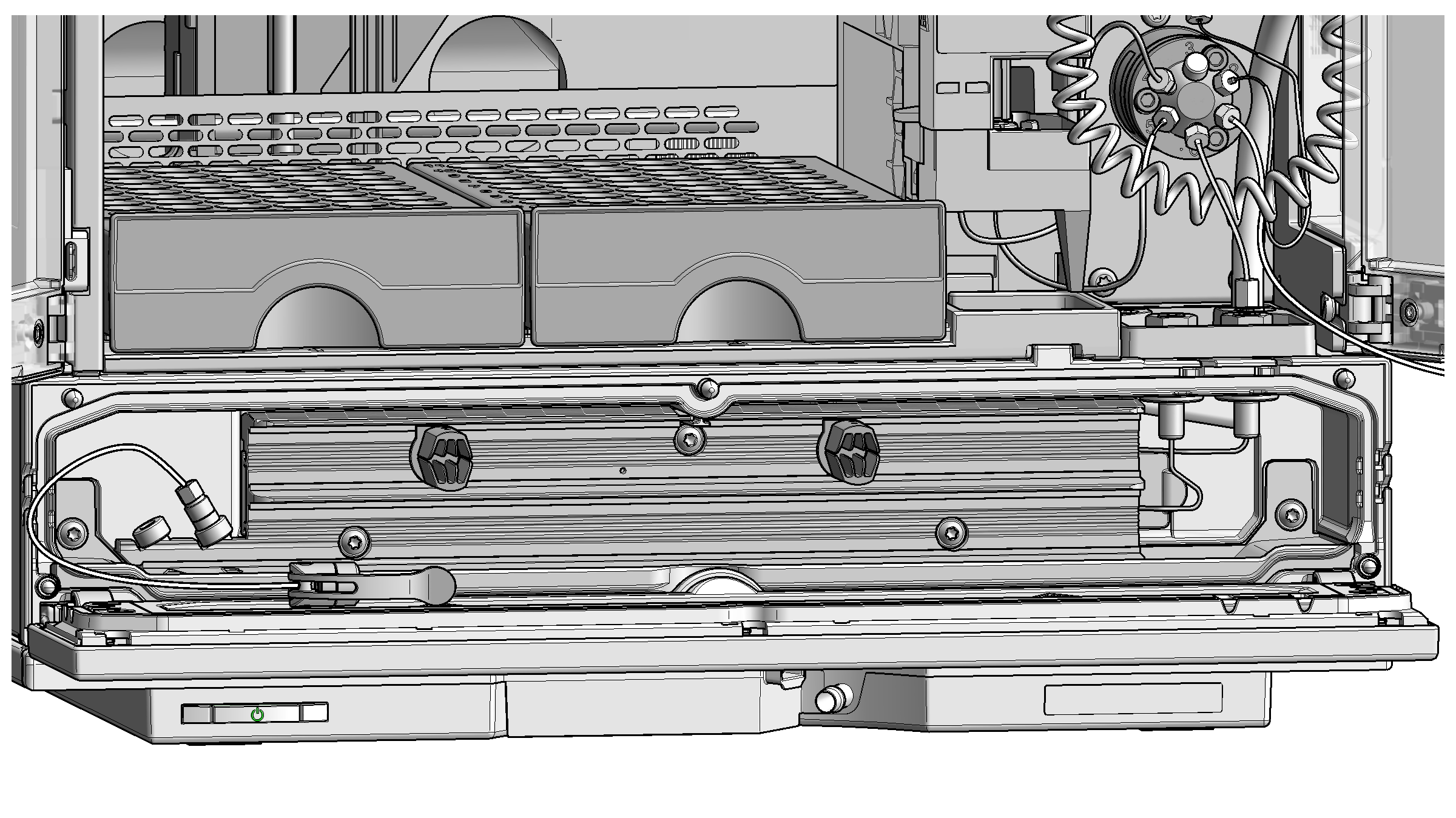

Open the doors of the sampler.

WARNING

Fire or explosion due to missing leak drainage

Solvents may run into the module if column shelf or Integrated Column Compartment are not installed.

Install either column shelf or Integrated Column Compartment before starting the module.

NOTE

When storing the ICC, plug the ports with a blank nut to prevent dust from entering the heat exchanger capillaries.
