Prepare the Detector for Transportation
When
|
Parts required
Qty. | p/n | Description | |
|---|---|---|---|
1 |  | G7123-42009 | Foam Protection FLD |
1 | | 1401-0641 | Cap-round W/FLG 60.33mm-ID Vinyl Black |
1 | | 0100-1259 | Plug-Screw 1032- Fitting |
WARNING
UV radiation and blue light.
- Proper PPE (Personal Protective Equipment) must be used.
- Do not look directly into the light, do not place hands into the cell compartment and do not put anything into the light path.
- Never open the housing while the lamp is on.
- Turn off the lamp before changing the cell.
CAUTION
Mechanical damage
- For shipping the module, insert the Protective Foam to protect the module from mechanical damage.
- Be careful not to damage tubing or capillary connections while inserting the module in the Protective Foam.

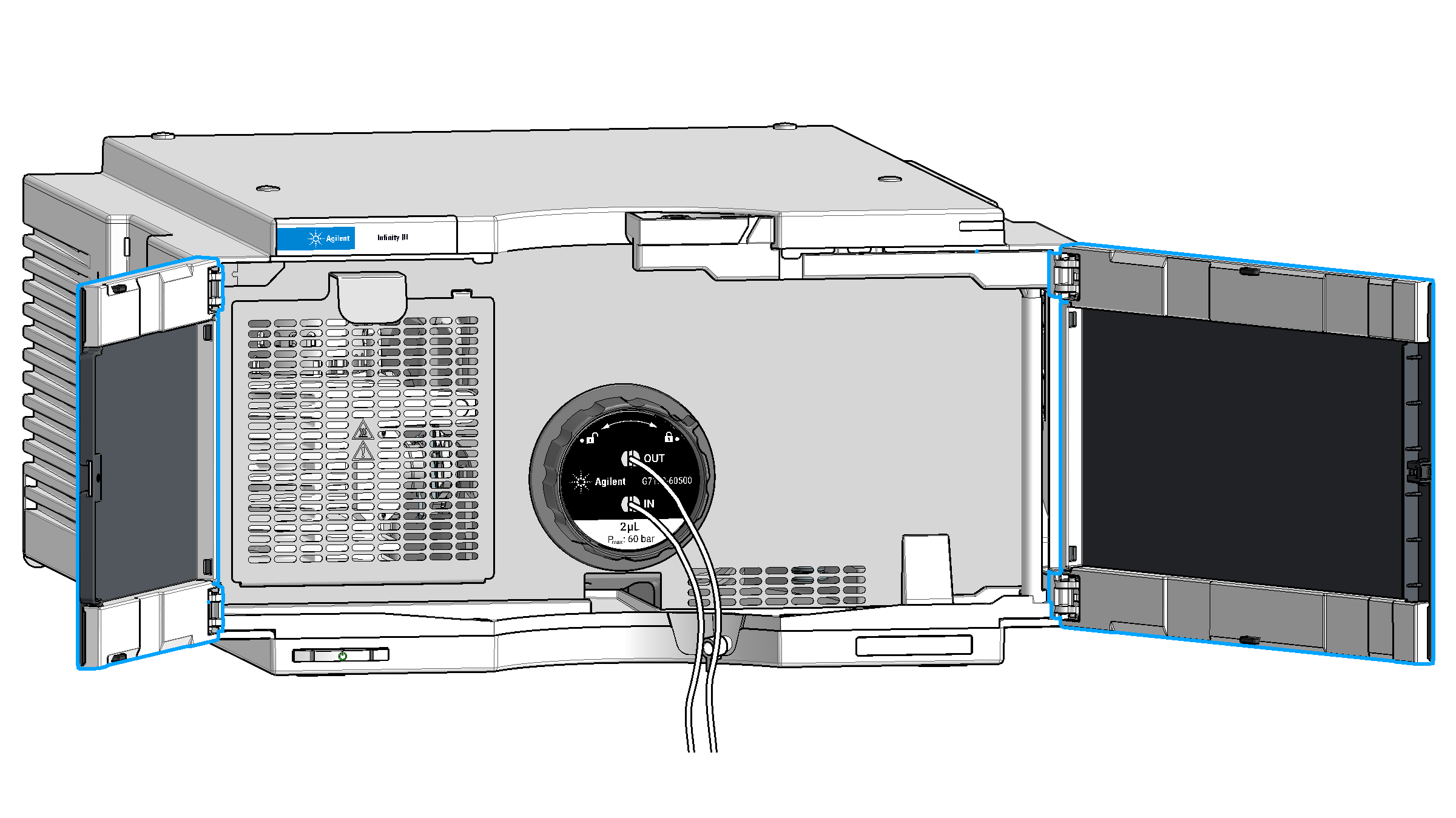

Open the doors.
Uninstall the capillaries.
Install the flow cell plugs.
To unlock the flow cell, turn the black collar of the flow cell counter-clockwise until stop.
Remove the flow cell.
Put the black protection cover over the flow cell opening.

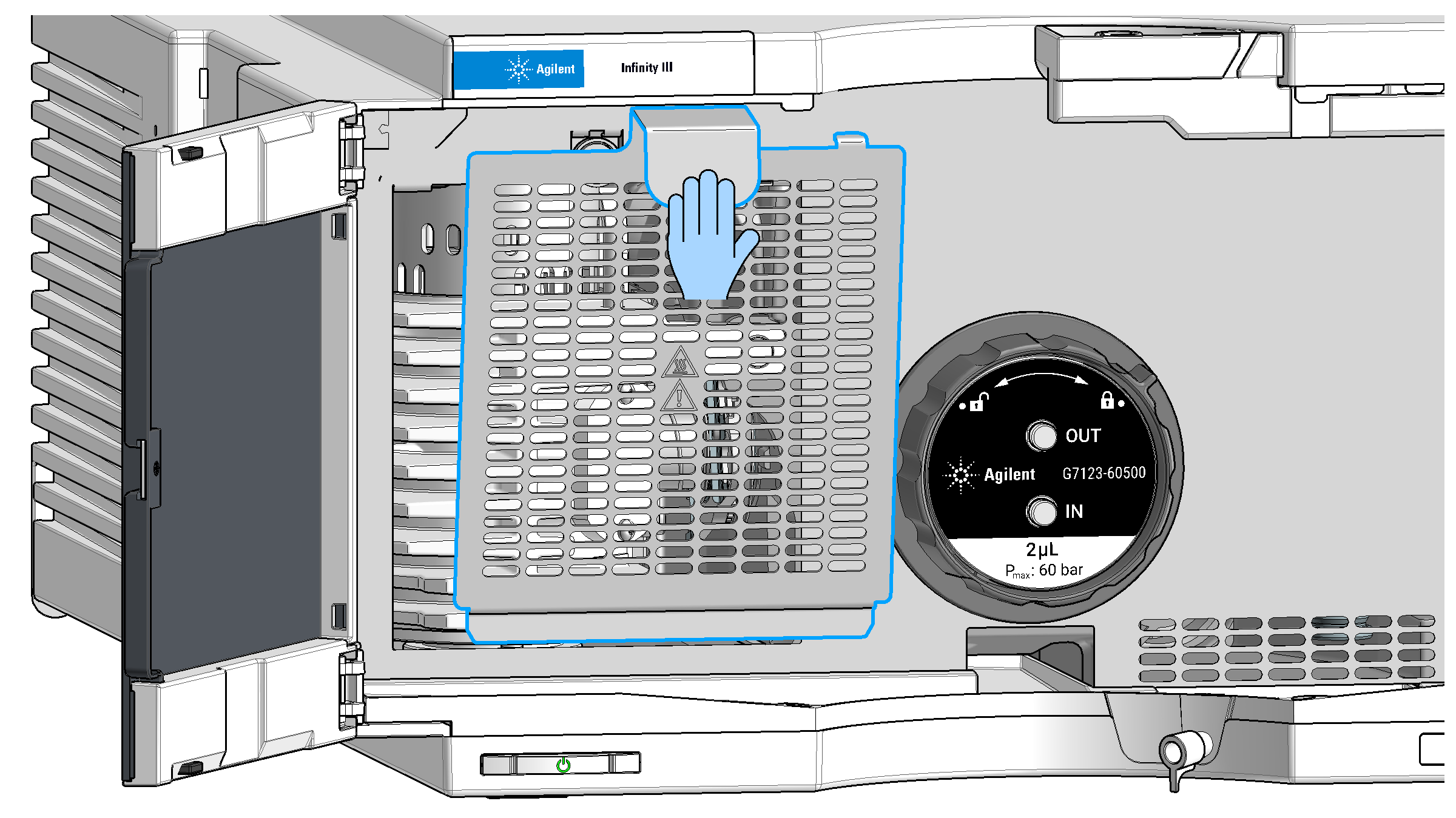

Remove the safety grid by pulling on the metal handle.

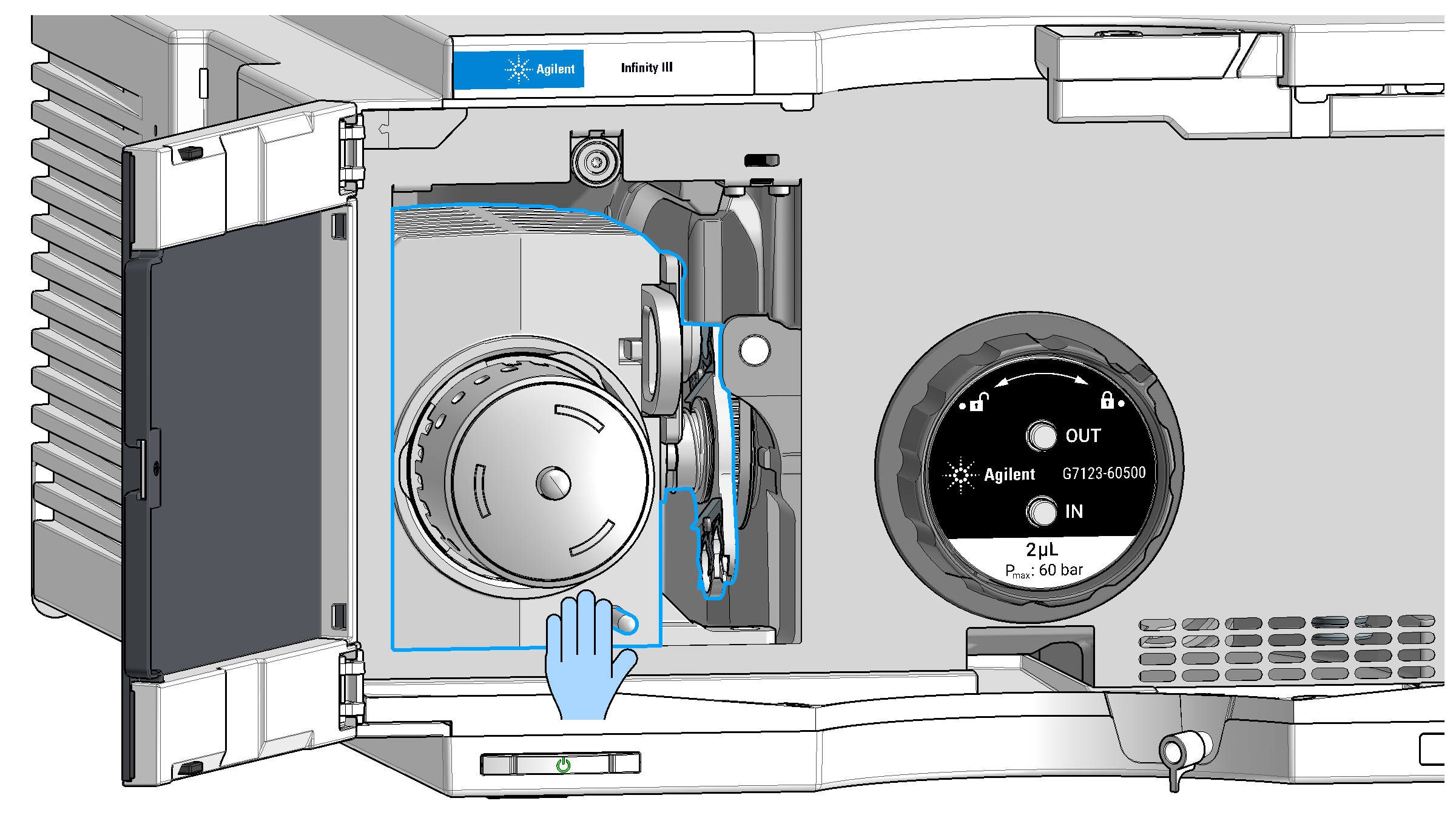

Pull the metal rod towards the front, so the lamp housing gets turned by 90 degrees.
Place the yellow transportation lock on the lamp.
Push the metal rod on the lamp housing up-/backwards, so the lamp housing turns by 90 degrees until it comes to a stop and gets held in place by a magnet.
Place the yellow transportation lock on the left side.

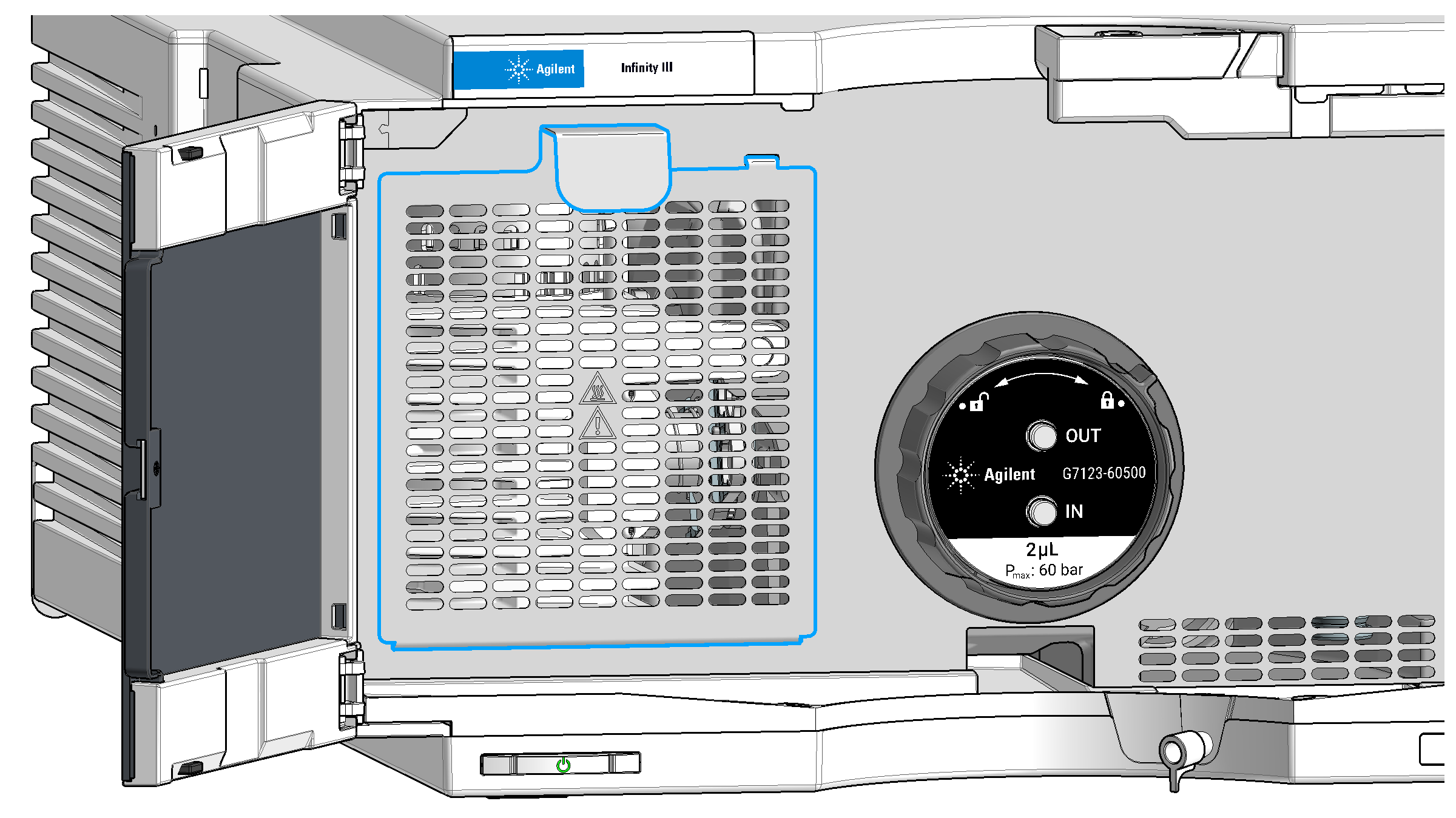

Re-install the safety grid. Insert at the bottom, then the top gets held in place by a magnet.
Insert the protection foam.
Close the doors.
