Replace the Lamp House Window
When
|

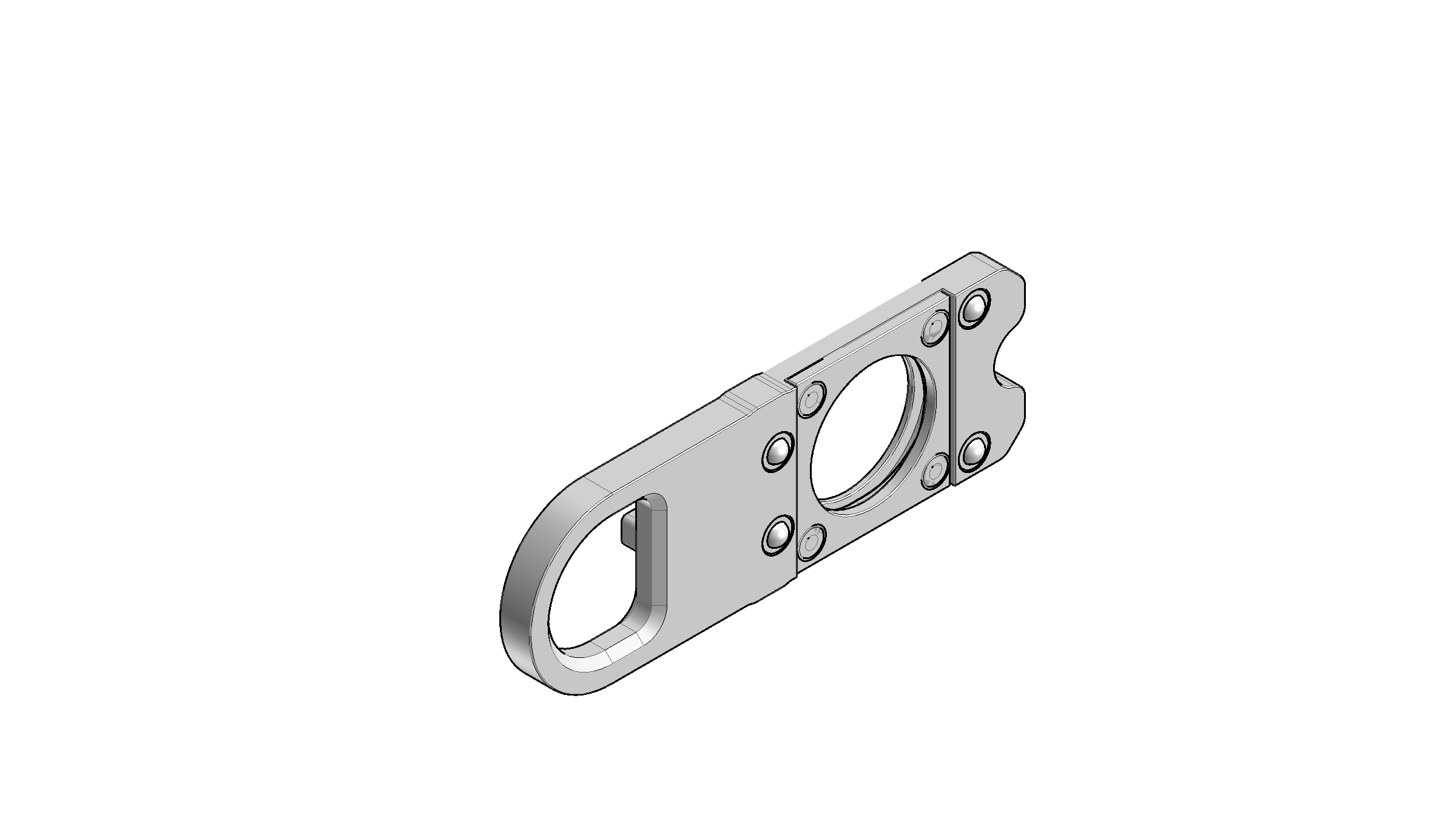

Parts required
Qty. | p/n | Description | |
|---|---|---|---|
1 |  | G7123-60060 | Window Slider-Assembly |
Prerequisites
|
WARNING
The lamp housing can be hot.
- Allow sufficient time to cool down.
NOTE
Maximum safe daily UV/blue light energy dose at a distance of 50 cm (according to IEC 62471) is reached after 8 hours if detector is operated with opened lamp service door.

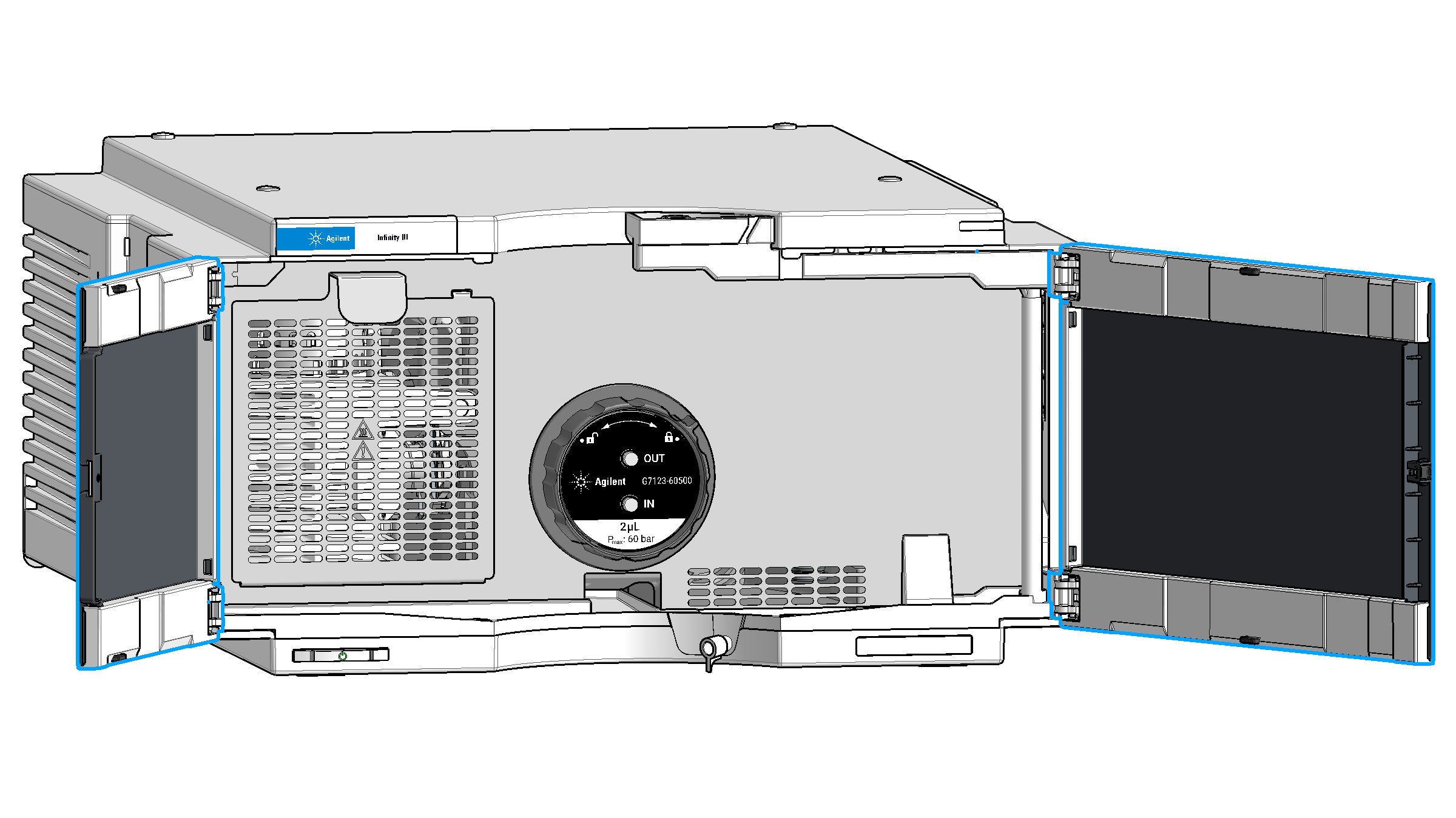

Open the doors.
Remove the safety grid by pulling on the metal handle.
Pull the metal rod towards the front, so the lamp housing gets turned by 90 degrees.

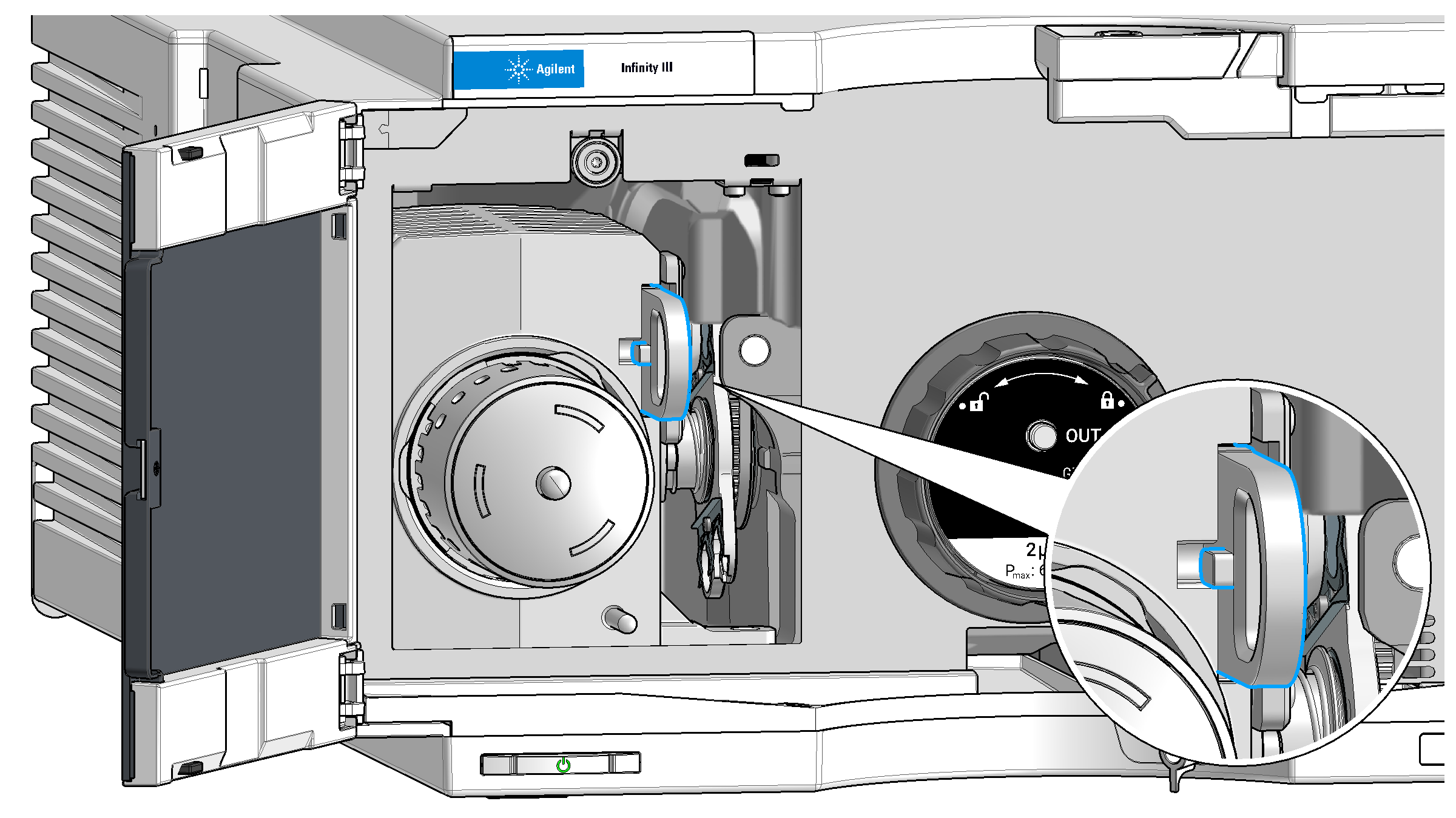

Remove the window holder by pulling the handle of the window holder towards you.
WARNING
UV radiation and blue light.
- Proper PPE (Personal Protective Equipment) must be used.
- Do not look directly into the light, do not place hands into the cell compartment and do not put anything into the light path.
- Never open the housing while the lamp is on.
- Turn off the lamp before changing the cell.
Take the new window holder.
Fully insert the new window holder into the lamp housing until it clicks in. Pay attention to the orientation of the index key on the window holder and the notch on the lamp housing.
Push the metal rod on the lamp housing up-/backwards, so the lamp housing turns by 90 degrees until it comes to a stop and gets held in place by a magnet.
Re-install the safety grid. Insert at the bottom, then the top gets held in place by a magnet.
Close the doors.
Power on the module.
Ignite the lamp.
Install 5022-2159 (Restriction capillary, SST 0.12 mm ID, 2 m long) .
Flush the system with fresh, clean water.
Perform a wavelength calibration.
Run a Lamp Intensity Check.
