Instrument Configuration

NOTE

If the system in use supports the InfinityLab Assist, follow the instructions provided.

Else use LabAdvisor, or OpenLab CDS.

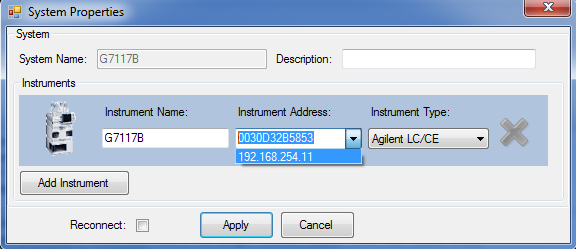

Example shows an instrument configuration with a Diode Array Detector in LabAdvisor.

Set the switches of the Configuration switch at the rear of the module:
1. All switches DOWN: module uses the default IP address 192.168.254.11.
1. Switch 4 UP and others DOWN: module uses DHCP.
1. Switch 5 UP and others DOWN: modules uses STORED address.
Enter the setup information (MAC^{MAC address can only} / IP address and/or Instrument Name).
